Schools Interoperability Framework

Specification Document

Working Draft

September 2, 1998



Revision History

Version

Date

Changed By

Description

1.0

09/02/98

Dianne Kennedy, Manish Sharma

Initial Creation





1 INTRODUCTION *

1.1 Background *

1.2 The Schools Interoperability Framework *

1.3 Scope and deliverables of the Schools Interoperability Framework *

1.4 Membership *

1.5 Relationships with other standards in education *

1.6 Objectives of the Schools Interoperability Framework *

1.7 Overview of the approach *

1.8 The XML Advantage *

1.9 Structure Charts *

1.10 Using Namespaces to solve versioning issues *

1.11 Overview of Remaining Sections *

2 OBJECTS, RELATIONSHIPS and QUERIES *

2.1 Student Object *

2.2 Contact Object *

2.3 Teacher Object *

2.4 School Object *

2.5 Relationships *

2.6 Queries *

2.6.1 Query spanning only one object *

2.6.2 Query spanning multiple objects *

3 MESSAGES and EVENTS *

3.1 Overall Schools Interoperability Framework message Structure *

3.2 K12Event Message *

3.3 Enrollment Change Message *

3.4 Student Update Message *

3.5 Partial Student Update Message *

3.6 Teacher Update Message *

3.7 Partial Teacher Update Message *

3.8 Contact Update Message *

3.9 Partial Contact Update Message *

3.10 School Update Message *

3.11 Partial School Update Message *

ID Change Message *

3.13 K12 Request Message *

3.14 K12 Response Message *

3.15 K12 Subscribe Message *

3.16 K12 Unsubscribe Message *

3.17 K12 Publish Message *

3.18 K12 Unpublish Message *

4 APPLICATION INTERACTION MODES *

4.1 Query/ Response *

4.2 Publish/Subscribe *

APPENDIX A: XML Ė TAG DOCUMENTATION *

Address *

AptNumber *

AptNumPrefix *

AptNumSuffix *

AptType *

AreaCode *

BirthDate *

ChangedStatus *

ChangeReason *

City *

Complex *

Contact *

ContactID *

ContactName *

ContactUpdate *

County *

Credentials *

Date *

DateHired *

Department *

DistrictNbr *

EffectiveDate *

ElectronicID *

EmployeeID *

EnrollStatusChg *

Error *

Event *

Ext *

FirstName *

Gender *

GradeLvl *

GradYear *

HomeRoom *

IDUpdate *

ImmigrationStatus *

K12Event *

K12Framework *

K12Publish *

K12Request *

K12Response *

K12Subscribe *

K12UnPublish *

K12UnSubscribe *

LastName *

MiddleName *

MsgHead *

MsgID *

NewContactID *

NewSchoolID *

NewStudentID *

NewTeacherID *

Number *

Object *

PartialContactUpdate *

PartialSchoolUpdate *

PartialStudentUpdate *

PartialTeacherUpdate *

PhoneNumber *

PublishHead *

Race *

RecordCount *

Relationship *

RequestHead *

RequestMsgID *

ResponseData *

ResponseHead *

School *

SchoolID *

SchoolName *

SchoolUpdate *

SchoolYear *

Source *

SSN *

State *

Status *

Street *

StreetName *

StreetNumber *

StreetPrefix *

StreetSuffix *

StreetType *

Student *

StudentID *

StudentName *

StudentUpdate *

SubscribeHead *

Teacher *

TeacherID *

TeacherName *

TeacherUpdate *

Time *

XMLQuery *

Zip *

APPENDIX B: XML Ė TAG REFERENCE *

APPENDIX C: XML DTD *

APPENDIX D: XML Ė Data Schema *



1 INTRODUCTION



1.1 Background

One of the most pressing problems in the education industry today is that of inter operability. The situation today is that the applications available for schools and districts are either closed systems allowing no programmatic access of data or allow access via proprietary interfaces and data formats.

In the case where these applications are closed systems, the problems is that school personnel spend endless time entering the same data over and over again into multiple applications. A typical example of this is a school that needs to store student demographics information in a student administration application as well as a library management application. If both these applications are closed systems, the only way to enter this information is for someone to manually type it into both systems. This type of redundant data entry is time consuming and error prone. If a student moves and his/her address changes, someone has to go into each one of these systems and manually update the studentís information.

In order to solve some of these redundant data entry problems, a number of vendors provide proprietary interfaces and data formats to allow programmatic exchange of data. This, however, is only a partial solution to the problem. Since every vendorís interface and data format is different, deploying an interoperable system (made up of diverse applications) at a school or district is often a costly proposition caused by lengthy negotiations among vendors and custom software development. The system is also hard to maintain. Since the interface and data format is defined by one vendor and not by a standards committee, an arbitrary change made by that vendor can cause other applications to function improperly.

Over the past several months there have been a number of meetings with leading education software vendors on the topic of interoperability among the applications in the education industry. The main conclusion from all of these meetings was that the only way to achieve interoperability among these applications was for all the interested parties to come together and define standards that all the vendors would adopt. These standards would define a common data format, naming conventions and rules of interaction among applications and would allow end users to create solutions by mixing and matching different applications. Since these solutions would be created by plugging together modules from different vendors schools and district could create functionally rich solutions offering the degree of customization that they need.



1.2 The Schools Interoperability Framework

The Schools Interoperability Framework is such an effort driven by the leading vendors in the education market. Itís objective is to provide interoperability by defining a common format for the data that needs to be shared among applications (like student demographics, attendance information, grades etc.) and defining a protocol for these applications to interact with one another. The goal of this standard is to move the entire education industry from itís current state of "application islands" to one where all applications plug and play together and allow open access to their data for creating reports at the district, state and federal levels using internet technologies.

There are a number of benefits to having this type of an industry wide standard. From the end users perspective having the choice of applications that conform to a industry wide standard means that they can put together functionally rich systems using a best of breed approach. Integration and data aggregation at the district and state level becomes easier giving a level of access to information that is not possible today.



1.3 Scope and deliverables of the Schools Interoperability Framework

The Schools Interoperability Framework is a specification that defines standards for the data that is exchanged among the applications in the education industry and the protocol for these applications to interact with one another. It is a broad industry wide initiative addressing the issue of multiple platforms and technologies found in schools and districts today and is not tied to a single vendor or technology. In addition to the standards document itself, other deliverables of the framework include an implementation guide, a sample implementation based on this guide, compliance criteria and certification procedures. In addition to this an SDK will be provide that has the APIís, programmerís manual and sample code.



1.4 Membership

The scope of this standards initiative is industry wide and not restricted to a particular vendor or technology. As such, membership is open to all interested parties including school, district and state education personnel. For information about participating and/or being a part of the regular mailings, please send e- mail to mailto:info@schoolsinterop.org or visit the web site at http://www.schoolsinterop.org











1.5 Relationships with other standards in education

There has been a lot of good work done in the area of standardization for the education market. Two of the leading efforts are SPEEDE/ExPRESS (and itís extensions) and EDUCOM IMS.

SPEEDE/EXPRESS is an EDI based standard for the education industry which specifies the transaction sets, data segments and data fields for common transactions that need to occur electronically between schools and districts. These include transactions for student loan requests, student transcript request etc. The Schools Interoperability Framework fully intends to use as much of the SPEEDE/ExPRESS specifications as possible without reinventing definitions of common attributes like codes for gender, ethnicity, grades etc. The following are some of the things that the Schools Interoperability Framework does differently from SPEEDE/ExPRESS.



As stated earlier the Schools Interoperability Framework will adopt the SPEEDE/ExPRESS definitions when applicable but representing them in XML rather than traditional EDI.

EDUCOM IMS is a standards effort that relates to metadata standards and online content management. The Schools Interoperability Framework will continue to investigate any synergy that may exist between these two efforts.





1.6 Objectives of the Schools Interoperability Framework

In this section we define the objectives that this standard must meet.

  1. The standard must provide interoperability among the different applications. This is achieved in two ways, one by specifying a standard format for data that needs to be exchanged and two, by specifying the high level mechanisms for the interactions among these applications.
  2. The standard must take into account the diverse range of platforms and technologies used in schools today. This means that the standard must not be defined in a way that it excludes certain platforms and technologies while favoring others. To meet this end, any implementation issues will not be part of the main specification instead will be provided as supplemental implementation guide(s).
  3. The standard should allow for site specific customizations for sites requiring a high degree of customization.
  4. The standard must look into co-operating with other established standards to ensure that any synergy is identified and work is not reinvented.
  5. The standard will not make any assumptions about data ownership. These issues will be decided at the specific site by the ISVís and districts involved. The technique to customize site specific data ownership issues will be specified in the implementation guide not in the standard specification. An example of site specific data ownership issues is the ownership of attendance data. One site may use a grade book application for attendance whilst another may use a Student information application. Both configurations must be allowed and the technique for configuring the data source for attendance records to be one versus the other is specified in the implementation guide.
  6. This initiative is committed to be market driven. To this end a goal of this effort is to engage the schools and districts extensively to make sure that the most pressing issues are addressed with the right priority and to get validation on the current and future directions of the Framework.





1.7 Overview of the approach

In this section we take a high level look at the approach that has been followed to define the Schools Interoperability Framework. The ideas that form the basis of the framework were developed and refined over the course of several meetings with the representatives of the companies that form the core group. This document is a result of these meetings. The Schools Interoperability Framework will continue to hold these meetings regularly to ensure that the specification is progressing satisfactorily and new ideas are constantly being incorporated keeping in step with the latest innovations in technology and with the changing needs of the marketplace.

The specifications process began by identifying some of the common objects that are exchanged among applications and the relationships that exist among them. The initial objects defined were student, teacher and contact objects. Of all possible relationships among these objects, a subset was identified that would be supported in the Framework. This subset was identified based on the interactions that typically occur among applications. The remaining relationships were discarded. These relationships are used to determine the valid queries that the Framework supports.

After identifying these objects the next thing done was to identify the events that occur on a day to day basis in schools. Some of these included, student enrollment change event (like admission, graduation, transfer etc.) or student update event (like change in home address). Then, the data messages that get exchanged as a result of these events were identified. One of the considerations taken into account was that different applications may require different data fields on the same event. For example, on a student enroll event, Application A may require student address while application B may require student phone number. It was decided that both fields would be sent with this event and the individual applications would supply filters that would extract the field that was of interest to them. In addition to event data messages, other messages like queries, publish and subscribe messages were also defined.

After the objects, events and messages were identified, rigorous modeling techniques were applied to model the data and XML definitions for the objects and messages were created. The resulting XML DTD is the basis of the XML data specification for the Schools Interoperability Framework. The next task was to define the types of interactions that Framework compliant applications would support.





Two types of interactions that need to take place among applications were identified:



This is an overview of the approach used in defining the specification for the Schools Interoperability Framework. In subsequent meetings this process may be further refined but the basic idea will still be to define more object, relationships, events and messages thereby increasing the scope of this initiative. The remaining chapters of this specification describe this approach in detail and present the deliverables at the end of each stage. For a mapping of this data model and interactions into a working architecture and API using specific technologies, please refer to the attached Implementation Guide.



1.8 The XML Advantage

This document assumes familiarity with the basic concepts of XML and as such does not attempt to give a detailed explanation of what XML is. Two excellent references for XML are: The XML Handbook by Charles Goldfarb & Paul Prescod and Presenting XML by Richard Light. Before embarking upon this endeavor, a conscious decision was made to use XML as the means to define and exchange data. This was done for a number of reasons. XML is rapidly becoming a very popular technology for a wide variety of applications ranging from Database Publishing to Electronic Commerce. In fact a number of organizations are looking at XML for specifying the standards in their particular domain like EDUCOM IMS, HL7 for Healthcare and TCIF (Tele Communication Industry Form).

Here are some of the advantages that XML brings to the table.



1.9 Structure Charts

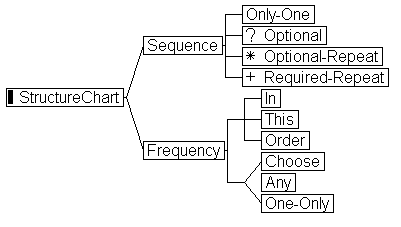

Structure charts show the hierarchy of an XML Model. These charts are used throughout this document to describe the data model. Frequency is indicated by symbols that precede the element name. If no symbol is present, one (1) instance of the element is required. If question mark symbol appears, the element is optional (0 or 1). If an asterisk appears, the element is optional and repeatable (0 or more). If a plus appears, the element is required and repeatable (1 or more).



Figure 1: Components of a structure chart



Structure Charts also communicate the sequence, or order, of elements within a model. Square connectors indicate elements that occur in a prescribed order. Angular connectors mean that only one of those listed may be chosen (exclusive or). The occurrence of a tilde (~) in a box means that the element has a attribute associated with it.

1.10 Using Namespaces to solve versioning issues

<To Be Added>



1.11 Overview of Remaining Sections

Section 2 describes the objects that are currently defined in the specification, the relationships that exist among them and how these relationships related to forming valid queries. Structure charts are used to describe the objects and examples are given.

Section 3 describes the events and messages that are exchanged among the applications. The events are related to the messages they generate. The entire K-12 message structure is described in this section along with examples.

Section 4 at a high level the two types of interactions that the applications need to support i.e. Query/response and Publish/Subscribe.

Appendix A has all the tag documentation along with examples, attribute descriptions and values. References to SPEEDE/ExPRESS are made for the cases where these values have been adopted from them.

Appendix B is a quick alphabetic Tag reference.

Appendix C is the XML DTD

Appendix D has the corresponding XML Ė Data schemas for the XML models.



2 OBJECTS, RELATIONSHIPS and QUERIES

This section describes the various objects that have been identified and the relationships between them. The reason for specifying the supported relationships is to allow only those queries for data that are based on these relationships and to disallow other ad hoc queries.

2.1 Student Object

This object contains all the information that pertains to an individual student like id, name, address etc. The next figure shows the XML structure chart for the student object with all the elements that make up a student.

Figure 2: Student Object structure chart

Based on this definition an XML representation of a student object is shown next.

<Student id="k0023">

<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<StudentName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</StudentName>

<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL">
<Zip>60434</Zip>

</Address>

<SchoolID href="#s0067" type="secondary">

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"><ImmigrationStatus code="2">

<SSN>330-44-7788<SSN><Gender code="F">

<Race code="A"><BirthDate>19831007</BirthDate>

<TeacherID href="#78223">

<ContactID href="#33425">

</Student>

Note: For a full description of possible attribute values and descriptions of elements and attributes, please refer to Appendix A , XML Ė Tag Documentation.



2.2 Contact Object

The contact object is defined to contain contact information for a student or a teacher. The next figure shows a structure chart for the contact object.



Figure 3: Contact object structure chart. Street element is as defined in Figure 2 for the Student Object

Based on this structure chart an XML representation of a contact object will look like this.

<Contact id="k0023 type="emergency">

<ContactName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</ContactName>

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/>
<Relationship code="03"/>

</Contact>

2.3 Teacher Object

The teacher object is defined to contain information related to a teacher. Itís definition can be seen in the next figure.





Figure 4: Teacher object structure chart. Street is as defined in Figure 2





Here is an example of a teacher object based on this definition.

<Teacher id="k0023" type="fulltime">

<EmployeeID href="#4587">
<Credentials code="4.1">

<DateHired>960717</DateHired>

<SchoolID href="#s0067" type="secondary">

<HomeRoom>23</HomeRoom>

<Department>Science</Department>

<BirthDate>780914</BirthDate>

<ContactID href="#33425">

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<TeacherName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</TeacherName>

<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/>

</Teacher>



2.4 School Object

The school object represents the information pertaining to a school. Here is an example of a school object based on this definition.







Figure 5: School Object structure chart

<School id="k2345" code="HS">
<SchoolName>York High School</SchoolName>
<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<DistrictNbr>544</DistrictNbr>

<StudentID href="#6712"/> . . .

<TeacherID href="#4532a"/> . . .

</School>



2.5 Relationships

This section defines the relationships among the objects defined above. The purpose of defining these relationships as part of the standard is to define the types of queries that framework complaint applications support. Since the framework does not support ad hoc queries, defining the relationships among objects separates out a subset of all possible queries that are valid. For example for the relationship "A Student has one or more teachers", the following queries are valid: "For a given student return the names of all teachers" or "Return all students whose teacher is Mrs. Smith" etc. The following relationships exist among the different objects.

Note that we have deliberately left out relationships like "A Teacher has one or more students" or "A Contact belongs to one or more Student". This is done because no immediate value is seen by adding these relationships. As the Framework proceeds new relationships may be defined as needed.







2.6 Queries

Having defined the relationships that exist among the different objects, this section now describes the types of queries that are valid. The following types of queries are valid.



2.6.1 Query spanning only one object

Given the class of object return a number of records where each record contains one or more fields that make up an object and where each object selected meets the specified criteria

The simplest type of query of this type is in which a unique object is identified based on the class and an Id and one or more fields are returned. An example of this type of query is "For a Student object, where student id = 999-99-9999, return the name, address and phone number". In this case only one record is returned because the criteria specified picks a unique object.

Another query of this type is "For a Teacher object, return the names of all teachers teaching in Redmond". In this case the selection criteria picks a number a teachers so a number of records are returned.

The key to remember in this type of query is that the data returned is always from the same object type so these queries are valid for all objects that the Framework defines.



2.6.2 Query spanning multiple objects

Given the class of one or more objects return a number of records where each record is made up fields from this object and/or itís related object and where this object or the related objects meet the given criteria.

This is where the importance of defining relationships becomes apparent. If certain objects are not related (according to the Framework definition) then a query assuming this relationship is invalid.

An example of a valid query is "For a Student and Teacher object return the names of the students and names of the teachers where the student lives in WA state". In this case there is a relationship between a student and teacher so this query is valid.

Another example of a valid query is "For a Teacher and Contact object return the names of the teachers and names of the contacts where the contact relationship is spouse".

Yet another valid query is "For a Student, Teacher and Contact object return the names of students, teacher and contacts where the contacts are the teacherís spouses".

This is an example of an invalid query. "For a Contact and School object return the names of the contacts belonging to WA state schools". The reason this is invalid is because there is no relationship between the Contact and School object.

Note: The exact mechanism needed to support this type of querying are still not clear. This section will be updated once the issues related to querying become clear. This will happen after the prototype has been implemented.







3 MESSAGES and EVENTS

In this section the real word events that are generated are identified and the messages that are exchanged among applications as a result of these events are defined. Consumers of data register with the framework to listen for these events. When they occur (they are typically generated by provider application) the data defined for these events is sent in the form of predefined messaged. The remainder of this section examines all these events and defines the XML messages that are exchanged. As before, detailed description of the elements that make up these events and messages are defined in Appendix A.



3.1 Overall Schools Interoperability Framework message Structure



Figure 5: The K12 Framework is made up of seven options; a event, a request, a response, a publish/unpublish and a subscribe/unsubscribe message. Note the exclusive OR connector. This means that the message can contain one and only one of the types describe below



3.2 K12Event Message

This is the message that is sent when an event is generated by a provider application. Note that the data associated with the event is also sent in the same message.









Figure 6: Each K12Event message may be either an enrollment status change, an update of student information (partial or complete), and update of teacher information (partial or complete) , an update of contact information (partial or complete) , or an update of school information ( partial or complete). It is important to note that each K12Event carries only one type of update information (although it may carry multiple records of the same type)





Every message that is exchanged is preceded by a header. This header is shown in the following figure.





Figure 7: The message header records a unique tracking ID, the date, the time, the source of the update, and the number of transactions or record count.





3.3 Enrollment Change Message

Trigger Event: Student Enrollment Status changes.

This message is sent when the status of a student changes. This includes student enrollment, student withdrawal, student graduation, student transfer event.

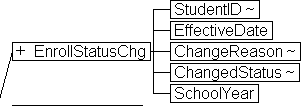

Figure 8: The enrollment status change is used to withdraw a student, enroll a student or transfer a student. This message consists of the student ID (which links this to a student record), the effective date, the reason for the change, the change of status, and the school year. SPEEDE /ExPRESS codes are used for the reason for change and the change status coding.

The next example shows what an XML representation of this message looks like.

<K12Framework>

<K12Event>

<MsgHead>

<MsgID>349839845</MsgID>

<Date>19980821</Date>

<Time zone = "PS">22:10</Time>

<Source>TBD</Source>

<RecordCount>1</RecordCount>

</MsgHead>

<EnrollStatusChg>

<StudentID id = "236ST-983 />

<EffectiveDate>19980821</EffectiveDate>

<ChangeReason code = "EB4" />

<ChangedStatus code = "withdrawn" />

<SchoolYear>1998</SchoolYear>

</EnrollStatusChg>

</K12Event>

</K12Framework>

Note: Some of these examples are shown with indents to make the hierarchy clear but in reality there should be no leading white spaces in the middle of the XML stream.



3.4 Student Update Message

Trigger Event: An entire student object is updated.

The Student Update message is sent when the entire information about the student needs to be transferred to another application. This typically happens when a new student is added to the system. This message simply contains the entire student object as show in the next figure. A definition of the fields in a student object can be found in Section 2.



Figure 9: Student Update Message

Example:

<K12Framework>

<K12Event>

<MsgHead>

<MsgID>349839845</MsgID>

<Date>19980821</Date>

<Time zone = "PS">22:10</Time>

<Source>TBD</Source>

<RecordCount>1</RecordCount>

</MsgHead>

<StudentUpdate>

<Student id="k0023"><ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<StudentName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName>

<FirstName>Helen</FirstName>

</StudentName>

<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName>

<StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL">
<Zip>60434</Zip>

</Address>

<SchoolID href="#s0067" type="secondary">

<GradeLvl>11</GradeLvl>

<GradYear type="original">1998</GradYear>
<Status code="enrolled"><ImmigrationStatus code="2">

<SSN>330-44-7788<SSN><Gender code="F">

<Race code="A"><BirthDate></BirthDate>

<TeacherID href="#78223">

<ContactID href="#33425">

</Student>

</StudentUpdate>

</K12Event>

</K12Framework>



3.5 Partial Student Update Message

Trigger Event: Some fields of a student object are updated.

Sometimes it is not necessary to send the entire student information. This happens when only some fields that make up a student object change. As example of this situation is when studentís address changes, this changed address should be the only field that is sent to other applications. The structure chart for this message is shown in the next figure.

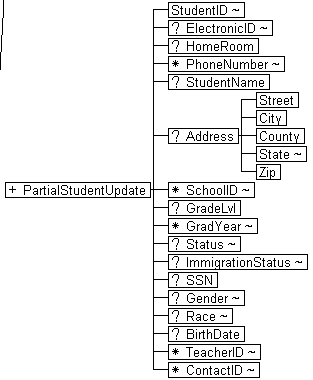

Figure 10: Structure chart for a partial student update message. Note that all the fields except for student Id are optional. The Student ID field is used by the receiving application to identify with which student this updated information needs to be associated.



Here is an example of a partial student update message. In this message the studentís phone number and address are changed.

<K12Framework>

<K12Event>

<MsgHead>

<MsgID>349839845</MsgID>

<Date>19980821</Date>

<Time zone = "PS">22:10</Time>

<Source>TBD</Source>

<RecordCount>1</RecordCount>

</MsgHead>

<PartialStudentUpdate>

<StudentID id = "236ST-983 />

<PhoneNumber type = "primary">

<AreaCode>425</AreaCode>

<Number>555-1113</Number>

</PhoneNumber>

<Address>

<Street><StreetNumber>12934</StreetNumber>

<StreetName>Northup</StreetName>

<StreetType>Ave.</StreetType>

</Street>

<City>Woodenville</City>

<County>King</County>

<State code = "WA"/>

<ZIP>98034</ZIP>

</Address>

</PartialStudentUpdate>

</K12Event>

</K12Framework>

Note: For examples related to message described in the following section, please refer to Appendix A.



3.6 Teacher Update Message

Trigger Event: An entire Teacher object is updated

This message is sent when all the information associated with a teacher needs to be updated. As in the case of the student update message this message simply contains the entire teacher object.

Figure 11: Teacher update message

3.7 Partial Teacher Update Message

Trigger Event: Some fields of a Teacher object are updated.

As before, the partial teacher update message is sent by an application when one or more individual fields of the teacher object change.

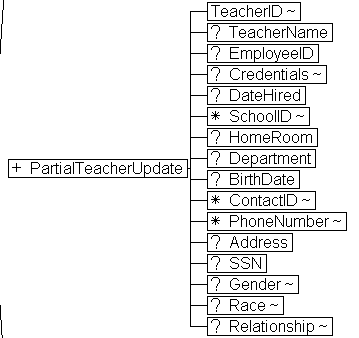

Figure 12: Partial Teacher Update message. Note that all the fields except for TeacherId are optional.



3.8 Contact Update Message



Trigger Event: An entire Contact object is updated.

This message is typically sent when a new contact is added to the system.

Figure 13: Contact update message



3.9 Partial Contact Update Message



Trigger Event: Some of the fields of a Contact Object are updated.

This message is sent when one or more fields of a contact object need to be updated

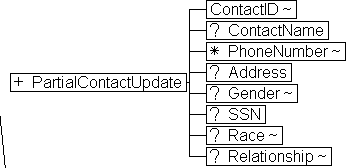

Figure 14: Partial Contact Update message. As before all the fields except ContactID are defined to be optional.



3.10 School Update Message

Trigger Event: An entire School object is updated

This message is sent when the information for the entire school object is updated.



3.11 Partial School Update Message

Trigger Event: Some fields of a School object are updated.

This message is sent when some of the fields that make up a School Object are updated

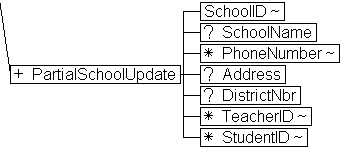

Figure 15: Partial School Update Message



3.12

ID Change Message

Trigger Event: An ID changes for student, teacher, contact or school.

This message is sent when some ID is updated. The ID is used to uniquely identify an object.



Figure 16: Partial School Update Message



3.13 K12 Request Message

When an application needs data from another application it sends it a request specifying the data it is interested in (in other words it sends a query). This type of interaction is described in Section 4.1 in more detail. This section is about defining the message that needs to be formulated by the requesting application. This is still under discussion and once the details of this message have been worked out it will be included in this document. Some of the considerations that are being discussed in order to define this message are:

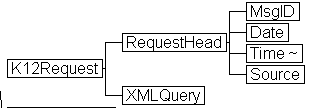

Figure 17: Each request bears a request ID for tracking purposes. A request also has a date, time, and source. The query is expected to be a text field containing an XML Query.



3.14 K12 Response Message

The response message is sent by the provider application after the request has been processed. Itís primary function is to return the data to the requesting application.

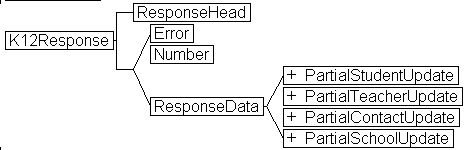

Figure 18: Each response bears the request ID as well as its own response ID for tracking purposes. A response may be a set of K12 elements, it may be a number (in response to a query such as "how many students . . ." or an error message may be returned if the query could not be executed for some reason.



3.15 K12 Subscribe Message

A consumer application uses this message to register with the framework the events (and the associated data) that have to be routed to it.

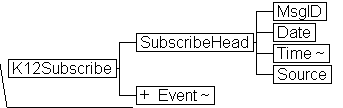

Figure 19: The K12 Subscribe Message contains a subscription heading and a number of events to which the application may sbuscribe.

Note: Please refer to Appendix A for a list of valid events to which a consumer may subscribe.



3.16 K12 Unsubscribe Message

Used by consumers to terminate subscriptions



Figure 20: The K12 UnSubscribe Message contains a subscription heading and a number of events to which the application may cancel subscriptions.



3.17 K12 Publish Message

Used by providers to tell the framework which data items are supplied by that particular provider. The framework uses this information to determine where to route request messages from consumer applications.

Figure 21: The K12 Publish Message contains a publish heading and a number of data objects which may be queried by other applications.

Note: Please refer to Appendix A for a list of allowable objects. The idea here is that a provider of data tells the framework which data (in terms of objects) it can provide to consumers. It is important to note that it is assumed here that all the data contained in one object is provided by a single application. This is not an unreasonable assumption because of the way the objects have been defined. If we ever come across an object whose data is not contained in a single application we will have to break that object into 2 or more sub-objects such that each sub-object is provided by one application.



3.18 K12 Unpublish Message

To tell the framework that this provider can no longer supply that particular data. To be used when an application terminates.

Figure 22: The K12 Publish Message contains a publish heading and a number of data objects which may no longer be queried by other applications.



4 APPLICATION INTERACTION MODES

This section examines the two modes of interaction that the standard defines. Applications use these two modes of interaction to exchange messages. These modes are:

.



4.1 Query/ Response

In this mode of interaction a consumer application sends a query message to a provider application. This query message contains the request for data by defining which type of data needs to be returned. The framework identifies the correct provider for this query, routes the query to it, receives the response data and returns it to the consumer applications. The types of allowable queries and the messages are defined in section 3.0

(Give some examples)

4.2 Publish/Subscribe

In the type of interaction, a consumer registers interest in an event with the Framework. When this event is sent to the framework by a provider application, the event (and the associated data) is routed to the consumer(s) that are registered to listen for this event. The supported events and the messages they generate are described in section 3.0 (give example)





APPENDIX A: XML Ė TAG DOCUMENTATION

This section contains detailed documentation of each tag and attribute arranged in alphabetical order. Examples of the use of each tag are given.

Address

<Address>

Description:

Identifies an address. See example below.

Required Attributes:

None

Example:

<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>

AptNumber

<AptNumber>

Description:

Identifies the apartment number portion of an address. See example below.

Required Attributes:

None

Example:

<Address>

<Street><AptNumber>2</AptNumber><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>





AptNumPrefix

<AptNumPrefix>

Description:

Identifies new See example below.

Required Attributes:

None

Example:

<Address>

<Street><AptNumPrefix>A</AptNumPrefix><AptNumber>2</AptNumber><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>





AptNumSuffix

<AptNumSuffix>

Description:

Identifies the apartment number suffix. See example below.

Required Attributes:

None

Example:

<Address>

<Street><AptNumber>2</AptNumber><AptNumSuffix>B</AptNumSuffix>
<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>







AptType

<AptType>

Description:

Identifies the apartment type. See example below.

Required Attributes:

None

Example:

<Address>

<Street><AptType>Suite</AptType>
<AptNumber>201</AptNumber><AptNumSuffix>B</AptNumSuffix>
<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>



AreaCode

<AreaCode>

Description:

Identifies an area code within a telephone number. See example below.

Required Attributes:

None

Example:

<PhoneNumber type="primary">

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>





BirthDate

<BirthDate>

Description:

Identifies a birth date in the D8 format (CCYYMMDD) See example below.

Required Attributes:

None

Example:

<Student id="k0023">

<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber> . . . </PhoneNumber>

<StudentName> . . . </StudentName>

<Address> . . . </Address>

<SchoolID href="#s0067" type="secondary"/>

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"/><ImmigrationStatus code="2"/>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/><BirthDate>891209</BirthDate>
<TeacherID href="#78223"/>

<ContactID href="#33425"/>

</Student>



ChangedStatus

<ChangedStatus code=x>

Description:

Identifies a change in enrollment status. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

code=x

Specifies the enrollment status

enrolled

withdrawn

Required

Example:

<EnrollStatusChg>

<StudentID href="#k0023"/>

<EffectiveDate>980909</EffectiveDate>

<ChangeReason code="D09"/>

<ChangedStatus code="withdrawn"/>
<SchoolYear>1998</SchoolYear>

</EnrollStatusChg>



ChangeReason

<ChangeReason code=x>

Description:

Identifies the reason for a change in student enrollment status. This is a SPEEDE/EXPRESS code. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

code=x

Specifies the reason why a studentís enrollment status had changed. The values are taken from SPEEDE/ExPRESS

B27 Student is eligible to continue or return or both

B28 Student is on suspension or dismissal

B29 Student is expelled (from PreK - grade 12)

B31 Not currently enrolled B38 Dropped

B39 Academic Probation

B40 Suspended

B51 Student on Suspension or Dismissal; Eligible to Apply for Re-entry

B52 According to established regulations or statutes

D03 Student has attended a nonpublic school or home education program in- or out-of-state this year

D04 Student was received from another attendance reporting unit in the same school

D05 Student was received from a school in the same district

D06 Student was received from another public school outside the district either in- or out-of-state

D07 Student was received from a nonpublic school either in or out of the district or has returned after having been enrolled in a home education program; The student must have been enrolled previously in a public school this year

D08 Student unexpectedly reentered the same school after withdrawing or being discharged

D09 Student was expected to attend a school but did not enter as expected for unknown reasons

D10 Student was promoted, retained, or transferred to another attendance-reporting unit in the same school

D11 Student was promoted, retained, or transferred to another school in the same district

D12 Student withdrew to attend another public school in the same district

D13 Student withdrew to attend another public school in- or out-of-state

D14 Student Over Compulsory Attendance Age Left School Voluntarily with No Intention of Returning

D15 Student Graduated from School with a Standard Diploma

D16 Student Graduated from School with a Special Diploma

D17 Student Left School with a Certificate of Completion

D18 Student Left School with a Special Certificate of Completion

D19 Student Left School with a State General Education Development (GED) High School Diploma

D20 Student Withdrew to Attend a Non-Public School or Home Education Program In- or Out-of-State.

D21 Student withdrew from school due to hardship

D22 Student has not entered any school in this or any other state this school year

D23 Previously attended out-of-state public school but is entering a public school in this state for the first time this school year

D24 Returned to Regular Education Program

EB1 Deceased

EB3 Withdrawn

EB4 Graduated

Required

Example:

<EnrollStatusChg>

<StudentID href="#k0023"/>

<EffectiveDate>980909</EffectiveDate>

<ChangeReason code="D09"/>

<ChangedStatus code="withdrawn"/>
<SchoolYear>1998</SchoolYear>

</EnrollStatusChg>





City

<City>

Description:

Identifies the city portion of an address. See example below.

Required Attributes:

None

Example:

<Address>

<Street>
<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>



Complex

<Complex>

Description:

Identifies the apartment complex portion of an address. See example below.

Required Attributes:

None

Example:

<Address>

<Street><Complex>Englewood Estates</Complex><AptType>Suite</AptType>
<AptNumber>201</AptNumber><AptNumSuffix>B</AptNumSuffix>
<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>





Contact

<Contact ID=x type=x>

Description:

Identifies the contact object. This is made up of the Contact Name, Phone Numbers, Address, Gender, SSN, Race, and Relationship See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

ID=x

Specifies the unique id of the contact

String of text

Required

Type=x

Specifies the type of contact

Emergency

Non-Emergency

Required

Example:

<Contact id="k0023 type="emergency">

<ContactName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</ContactName>

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/>
<Relationship code="03"/>

</Contact>





ContactID

<ContactID href=x>

Description:

Identifies a link to contact information. The href=x attribute links to the ID attribute on Contact. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

href=x

Specifies the link to a contact

A unique identifier

Required

Example:

<PartialStudentUpdate>

<StudentID href="#k0023"/>

<HomeRoom>23</HomeRoom>

<GradeLvl>12</GradeLvl>

<ContactID href="#33426"/>

</PartialStudentUpdate>

ContactName

<ContactName>

Description:

Identifies a contact name. Made up of last name, middle name and first name. See example below.

Required Attributes:

None

Example:

<ContactName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</ContactName>





ContactUpdate

<ContactUpdate>

Description:

Identifies an event which provides complete updates or enters new updates to contact information databases. This event may consist of one or more <Contact> information objects. See example below.

Required Attributes:

None

Example:

<ContactUpdate>

<Contact id="c2345" type="emergency"> . . . </Contact>

<Contact id="c2346" type="non-emergency"> . . . </Contact>

<Contact id="c2347" type="emergency"> . . . </Contact>

</ContactUpdate>

County

<County>

Description:

Identifies the county portion of an address. See example below.

Required Attributes:

None.

Example:

<Address>

<Street><AptType>Suite</AptType>
<AptNumber>201</AptNumber><AptNumSuffix>B</AptNumSuffix>
<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL">
<Zip>60434</Zip>

</Address>





Credentials

<Credentials code=x>

Description:

Identifies a teacher credentials using a SPEEDE/EXPRESS code. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

code=x

Specifies the SPEEDE/EXPRESS credential code

2.1 = Postsecondary certificate or diploma (less than one year)

2.2 = Postsecondary certificate or diploma (one year or more but less than four years)

2.3 = Associate Degree (e.g., Associate in Arts, Associate in Science, Associate in Applied Science)

2.4 = Baccalaureate Degree

2.5 = Baccalaureate (Honours) Degree

2.6 = Postsecondary certificate or diploma (one year or more but less than two years)

2.7 = Postsecondary certificate or diploma (two years or more but less than four years

3.1 = First Professional Degree

3.2 = Post-Professional Degree

4.1 = Graduate

4.2 = Master's Degree

4.3 = Intermediate Graduate Degree

4.4 = Doctoral Degree

4.5 = Post Doctoral

Required

Example:

<Teacher id="k0023" type="fulltime">

<EmployeeID href="#4587"/>
<Credentials code="4.1"/>

<DateHired>960717</DateHired>

<SchoolID href="#s0067" type="secondary"/>

<HomeRoom>23</HomeRoom>

<Department>Science</Department> . . . </Teacher>



Date

<Date>

Description:

Identifies a date in the D8 format (CCYYMMDD). D8 is a date code specified by SPEEDE/ExPRESS. See example below.

Required Attributes:

None

Example:



DateHired

<DateHired >

Description:

Identifies the date a teacher was hired in D8 format (CCYYMMDD) See example below.

Required Attributes:

None

Example:

<Teacher id="k0023" type="fulltime">

<EmployeeID href="#4587"/>
<Credentials code="4.1"/>

<DateHired>960717</DateHired>

<SchoolID href="#s0067" type="secondary">

<HomeRoom>23</HomeRoom>

<Department>Science</Department> . . . </Teacher>





Department

<Department>

Description:

Identifies department to which a teacher reports. See example below.

Required Attributes:

None

Example:

<Teacher id="k0023" type="fulltime">

<EmployeeID href="#4587"/>
<Credentials code="4.1/>

<DateHired>960717</DateHired>

<SchoolID href="#s0067" type="secondary"/>

<HomeRoom>23</HomeRoom>

<Department>Science</Department> . . . </Teacher>



DistrictNbr

<DistrictNbr>

Description:

Identifies the school district number. See example below.

Required Attributes:

None

Example:

<School id="k2345" code="HS">
<SchoolName>York High School</SchoolName>
<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<DistrictNbr>544</DistrictNbr>

<StudentID href="#6712"/> . . .

<TeacherID href="#4532a"/> . . .

</School>





EffectiveDate

<EffectiveDate >

Description:

Identifies the date on which a change in student enrollment takes effect. See example below.

Required Attributes:

None

Example:

<EnrollStatusChg>

<StudentID href="#k0023"/>

<EffectiveDate>980909</EffectiveDate>

<ChangeReason code="D09"/>

<ChangeStatus code="withdrawn"/>
<SchoolYear>1998</SchoolYear>

</EnrollStatusChg>

ElectronicID

<ElectronicID type=x>

Description:

Identifies the optional electonic identifier associated with the student object. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

type=x

Specifies the type of electronic identifier

"barcode", "magstripe", "pin"

Required



Example:

<Student id="k0023">
<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber> . . . </PhoneNumber>

<StudentName> . . . </StudentName>

<Address> . . . </Address>

<SchoolID href="#s0067" type="secondary"/>

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"/><ImmigrationStatus code="2"/>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/><BirthDate>891209</BirthDate>
<TeacherID href="#78223"/>

<ContactID href="#33425"/>
</Student>

EmployeeID

<EmployeeID>

Description:

Identifies the teacher employee ID. See example below.

Required Attributes:

None

Example:

<Teacher id="k0023" type="fulltime">

<EmployeeID>#4587</EmployeeID>
<Credentials code="4.1"/>

<DateHired>960717</DateHired>

<SchoolID href="#s0067" type="secondary"/>

<HomeRoom>23</HomeRoom>

<Department>Science</Department> . . . </Teacher>





EnrollStatusChg

<EnrollStatusChg>

Description:

Identifies a change in enrollment event. See example below.

Required Attributes:

None

Example:

<EnrollStatusChg>

<StudentID href="#k0023"/>

<EffectiveDate>980909</EffectiveDate>

<ChangeReason code="D09"/>

<ChangeStatus code="withdrawn"/>
<SchoolYear>1998</SchoolYear>

</EnrollStatusChg>



Error

<Error code=x>

Description:

Identifies an error condition that is returned within a K12 response. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

code=x

Specifies the error message code

1 = Insufficient Priv.

2 = Data not available (no data of this sort vs. null)

3 = Incorrect Query Syntax

4 = Resubmit Query

Required

Example:

<K12Response>

<ResponseHead>

<MsgID>#40250</MsgID>

<RequestMsgID>#32aa</RequestMsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

<RecordCount>4</RescordCount>

</ResponseHead>

<Error code="03"/>

</K12Response>





Event

<Event type=x>

Description:

The K12 subscribe transaction has a subscription header that identifies the transaction, gives the date and time as well as the source. The subscribe transaction then contains one or more objects that it wishes to receive. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

type=x

Specifies the event type

studentupdate, partialstudentupdate, teacherupdate, partialteacherupdate, contactupdate, partialcontactupdate, schoolupdate, partialschoolupdate

Required

Example:

<K12Subscribe>

<SubscribeHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</SubscribeHead>

<Event type="studentupdate"/>

<Event type="partialstudentupdate"/>

</K12Subscribe>



Ext

<Extension>

Description:

Identifies the extension within a phone number. See example below.

Required Attributes:

None

Example:

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

<Ext>2304</Ext>

</PhoneNumber>





FirstName

<FirstName>

Description:

Identifies the first name portion of a name. See example below.

Required Attributes:

None

Example:

<StudentName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</StudentName>



Gender

<Gender code="x">

Description:

Identifies gender. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

code=x

Specifies the SPEEDE/EXPRESS gender Code

"M"(Male), "F" (Female), "U" (Unknown)

Required

Example:

<Student id="k0023">

<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber> . . . </PhoneNumber>

<StudentName> . . . </StudentName>

<Address> . . . </Address>

<SchoolID href="#s0067" type="secondary"/>

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"/><ImmigrationStatus code="2"/>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/><BirthDate>891209</BirthDate>
<TeacherID href="#78223"/>

<ContactID href="#33425"/>

</Student>





GradeLvl

<GradeLvl>

Description:

Identifies the studentís grade level See example below.

Required Attributes:

None

Example:

<Student id="k0023">

<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber> . . . </PhoneNumber>

<StudentName> . . . </StudentName>

<Address> . . . </Address>

<SchoolID href="#s0067" type="secondary"/>

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"/><ImmigrationStatus code="2"/>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"><BirthDate>891209</BirthDate>
<TeacherID href="#78223"/>

<ContactID href="#33425"/>

</Student>



GradYear

<GradYear type=x>

Description:

Identifies the graduation year (projected or original). See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

type=x

Specifies the graduation year type

"original", "projected"

Required

Example:

<Student id="k0023">

<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber> . . . </PhoneNumber>

<StudentName> . . . </StudentName>

<Address> . . . </Address>

<SchoolID href="#s0067" type="secondary"/>

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"/><ImmigrationStatus code="2"/>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/><BirthDate>891209</BirthDate>
<TeacherID href="#78223"/>

<ContactID href="#33425"/>

</Student>



HomeRoom

<HomeRoom>

Description:

Identifies the studentís home room. See example below.

Required Attributes:

None

Example:

<Student id="k0023">

<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber> . . . </PhoneNumber>

<StudentName> . . . </StudentName>

<Address> . . . </Address>

<SchoolID href="#s0067" type="secondary"/>

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"/><ImmigrationStatus code="2"/>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/><BirthDate>891209</BirthDate>
<TeacherID href="#78223"/>

<ContactID href="#33425"/>

</Student>

IDUpdate

<IDUpdate>

Description:

This message is sent when any object ID is updated. The IDUpdate will consist of a *ID and a New*ID to indicate the existing ID and the new ID. See example below.

Required Attributes:

None.

Example:

<IDUpdate>

<StudentID href="#33426"/>

<NewStudentID href="#33426"/>

</IDUpdate>





ImmigrationStatus

<ImmigrationStatus code=x>

Description:

Identifies a studentís immigration status by SPEEDE/EXPRESS code. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

code=x

Specifies the immigration status SPEEDE/EXPRESS code

1 U.S. Citizen

2 Non-Resident Alien

3 Resident Alien

4 Illegal Alien

5 Alien

6 U.S. Citizen - Non-Resident

7 U.S. Citizen - Resident

8 Citizen

9 Non-citizen with Student Authorization

A Non-permanent Resident Alien

B Permanent Visa

C Temporary Visa

Required

Example:

<Student id="k0023">

<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber> . . . </PhoneNumber>

<StudentName> . . . </StudentName>

<Address> . . . </Address>

<SchoolID href="#s0067" type="secondary"/>

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"/><ImmigrationStatus code="2"/>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/><BirthDate>891209</BirthDate>
<TeacherID href="#78223"/>

<ContactID href="#33425"/>

</Student>



K12Event

<K12Event>

Description:

Identifies a K-12 Message. This may consist of an enrollment status change, a student update or partial student update, a contact update or partial contact update, a teacher update or partial teacher update or a school update or partial school update. Each message has a message header which identifies the message. A K12 Message can contain one or more like contents. For example a single message could send 12 student updates. But it could not mix student updates with teacher updates.

See example below.

Required Attributes:

None

Example:

<K12Event>

<MsgHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date><Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</MsgHead>

<EnrollStatusChg> . . . </EnrollStatusChg>

</K12Event>

K12Framework

<K12Framework>

Description:

Identifies the beginning of a K-12 Framework transction. May contain a K12 Message, a query, a response, or be used to subscribe or publish various data types. See example below.

Required Attributes:

None

Example:

<K12Framework>

<K12Event> . . . </K12Event>

</K12Framework>



K12Publish

<K12Publish>

Description:

This transaction is sent by an application that publishes or broadcasts one of the K12 message types.. The K12 publish transaction has a publish header that identifies the data objects it holds, gives the date and time as well as the source. The publish transaction may contain one or more data objects that it publishes and to which other applications may query. See example below.

Required Attributes:

None

Example:

<K12Publish>

<PublishHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</PublishHead>

<Object type="student"/>

<Object type="teacher"/>

</K12Publish>



K12Request

<K12Request>

Description:

Identifies query between one application and another. The K12Request is used to ask for information that is not broadcast by subscription. The K12 Request has a request head and the query itself. See example below.

Required Attributes:

None

Example:

<K12Request>

<RequestHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</RequestHead>

<XMLQuery> This is the query </XMLQuery>

</K12Request>

K12Response

<K12Response>

Description:

Identifies the response to a K12 request. The response contains a response header followed by either an error, a numeric answer to the query, or response data. See example below.

Required Attributes:

None

Example:

<K12Response>

<ResponseHead>

<MsgID>#40250</MsgID>

<RequestMsgID>#32aa</RequestMsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

<RecordCount>1</RescordCount>

</ResponseHead>

<Number>102</Number>

</K12Response>





K12Subscribe

<K12Subscribe>

Description:

This transaction is sent by an application that wishes to subscribe to one of the K12 message types. The K12 subscribe transaction has a subscription header that identifies the transaction, gives the date and time as well as the source. The subscribe transaction then contains one or more events that it wishes to receive. See example below.

Required Attributes:

None

Example:

<K12Subscribe>

<SubscribeHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</SubscribeHead>

<Event type="studentupdate"/>

<Event type="partialstudentupdate"/>

</K12Subscribe>



K12UnPublish

<K12UnPublish>

Description:

This transaction is sent by an application that publishes or broadcasts one of the K12 message types.. The K12 unpublish transaction has a publish header that identifies the data objects it holds, gives the date and time as well as the source. The unpublish transaction may contain one or more data objects that it no longer publishes. See example below.

Required Attributes:

None

Example:

<K12UnPublish>

<PublishHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</PublishHead>

<Object type="student"/>

<Object type="teacher"/>

</K12UnPublish>



K12UnSubscribe

<K12UnSubscribe>

Description:

This transaction is sent by an application that wishes to unsubscribe to one of the K12 message types. The K12 subscribe transaction has a subscription header that identifies the transaction, gives the date and time as well as the source. The subscribe transaction then contains one or more events for which it no longer need notification. See example below.

Required Attributes:

None

Example:

<K12UnSubscribe>

<SubscribeHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</SubscribeHead>

<Event type="studentupdate/>

<Event type="partialstudentupdate"/>

</K12UnSubscribe>

LastName

<LastName>

Description:

Identifies a last name within a full name See example below.

Required Attributes:

None

Example:

<StudentName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</StudentName>





MiddleName

<Middle>

Description:

Identifies a middle name within a full name. See example below.

Required Attributes:

None

Example:

<StudentName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</StudentName>



MsgHead

<MsgHead>

Description:

Identifies the heading of a K12 Message. See example below.

Required Attributes:

None

Example:

<K12Event>

<MsgHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</MsgHead>

<EnrollStatusChg> . . . </EnrollStatusChg>

</K12Event>



MsgID

<MsgID>

Description:

Identifies the K12 Message. See example below.

Required Attributes:

None

Example:

<K12Event>

<MsgHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date><Time zone="PS">10:20:15</Time>

<Source>http://admin.student.com:80/</Source>

</MsgHead>

<EnrollStatusChg> . . . </EnrollStatusChg>

</K12Event>

NewContactID

<NewContactID href=x>

Description:

Identifies a new contact ID and a link to contact information. The href=x attribute links to the ID attribute on Contact. The NewContactID href must match the ContactID href. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

href=x

Specifies the link to a contact

A unique identifier

Required

Example:

<IDUpdate>

<ContactID href="#33426"/>

<NewContactID href="#33426"/>

</IDUpdate>

NewSchoolID

<NewSchoolID href=x>

Description:

Identifies a new school ID and a link to school information. The href= attribute links to the ID value on the school object. The NewSchoolID href must match the SchoolID href. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

href=x

Specifies the link to a school

A unique identifier

Required

Example:

<IDUpdate>

<SchoolID href="#33426"/>

<NewSchoolID href="#33426"/>

</IDUpdate>



NewStudentID

<NewStudentID href=x>

Description:

Identifies a new student unique identifier and a link to a set of student information. The href attribute links by matching the ID attribute on <Student>. The NewStudentID href must match the StudentID href. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

href=x

Specifies the link to student information

String of text

Required

Example:

<IDUpdate>

<StudentID href="#33426"/>

<NewStudentID href="#33426"/>

</IDUpdate>

NewTeacherID

<NewTeacherID href=x>

Description:

Identifies a new teacher unique identifier and a link to teacher information. The href= attribute links to a matching ID on <teacher>. The NewTeacherID href must match the TeacherID href. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

href=x

Specifies the link to a teacher

String of text

Required

Example:

<IDUpdate>

<TeacherID href="#33426"/>

<NewTeacherID href="#33426"/>

</IDUpdate>





Number

<Number>

Description:

Identifies the number portion of a phone number. See example below.

Required Attributes:

None

Example:

<PhoneNumber type="primary">

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>





Object

<Object type=x>

Description:

The K12 publish transaction may contain one or more data objects that it publishes and to which other applications may subscribe. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

type=x

Specifies the object type

student, teacher, contact, school

Required

Example:

<K12Publish>

<PublishHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</PublishHead>

<Object type="student">

<Object type="teacher">

</K12Publish>

PartialContactUpdate

<PartialContactUpdate>

Description:

Identifies a partial update of contact information. This element must have a contact ID. This may contain any of the contact data fields which have changed. See example below.

Required Attributes:

None

Example:

<PartialContactUpdate>

<TeacherID href="#22334">
<PhoneNumber type="primary"> . . . </PhoneNumber>

<Address> . . . </Address>

</PartialContactUpdate>



PartialSchoolUpdate

<PartialSchoolUpdate>

Description:

Identifies a partial update of school information. This element must have a school ID. This may contain any of the school data fields which have changed. See example below.

Required Attributes:

None

Example:

<PartialSchoolUpdate>

<ContactID href="#s7434">
<PhoneNumber type="primary"> . . . </PhoneNumber>

<DistNumber> . . . </DistNumber>

</PartialSchoolUpdate>



PartialStudentUpdate

<PartialStudentUpdate>

Description:

Identifies a partial update of student information. This may contain any of the student fields which have changed. Update options include an optional barcode, optional homeroom, one or phone numbers, the student name, address, grade level, graduation year, enrollment status, immigration status, an optional social security number, gender, race, birth date, and optional related teacher IDs and contact IDs.

See example below.

Required Attributes:

None

Example:

<PartialStudentUpdate>

<StudentID href="#k0023"/>

<HomeRoom>23</HomeRoom>

<GradeLvl>12</GradeLvl>

<ContactID href="#33426"/>

</PartialStudentUpdate>



PartialTeacherUpdate

<PartialTeacherUpdate>

Description:

Identifies a partial update of teacher information. This must include a <TeacherID> and may include updates to Teacher Name, Employee ID, Credentials, DateHired, associated School IDs, HomeRoom, Department, Birth Date, one or more Contact IDs, Phone Numbers , Address, Social Security Number, Gender, and Race. See example below.

Required Attributes:

None

Example:

<PartialTeacherUpdate>

<TeacherID href="#k0023">

<Credentials code="4.3">

<HomeRoom>23</HomeRoom>

</PartialTeacherUpdate>





PhoneNumber

<PhoneNumber type=x>

Description:

Identifies a phone number made up of an area code and a number. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

type=x

Specifies the type of phone number

primary,

secondary

Required



Example:

<PhoneNumber type="primary">

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

PublishHead

<PublishHead>

Description:

Contains header information for the K12 publish transaction. The K12 publish transaction has a publish header that identifies the data objects it holds, gives the date and time as well as the source. The publish transaction may contain one or more data objects that it publishes and to which other applications may query. See example below.

Required Attributes:

None

Example:

<K12Publish>

<PublishHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</PublishHead>

<Object type="student"/>

<Object type="teacher"/>

</K12Publish>



Race

<Race code=x>

Description:

Identifies the SPEEDE/EXPRESS code for race. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

code=x

Specifies the SPEEDE/EXPRESS race code (DMG05)

7 Not Provided

A Asian or Pacific Islander

B Black

C Caucasian

D Subcontinent Asian American

E Other Race or Ethnicity

F Asian Pacific American

G Native American

H Hispanic

I American Indian or Alaskan Native

J Native Hawaiian N Black (Non-Hispanic)

O White (Non-Hispanic)

P Pacific Islander

Z Mutually Defined

Required

Example:

<Student id="k0023">

<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber> . . . </PhoneNumber>

<StudentName> . . . </StudentName>

<Address> . . . </Address>

<SchoolID href="#s0067" type="secondary">

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"><ImmigrationStatus code="2">

<SSN>330-44-7788<SSN><Gender code="F">

<Race code="A"><BirthDate>891209</BirthDate>
<TeacherID href="#78223">

<ContactID href="#33425">

</Student>

RecordCount

<RecordCount>

Description:

Identifies the record count of the data sent as a response to a K12 request. See example below.

Required Attributes:

None

Example:

<K12Response>

<ResponseHead>

<MsgID>#40250</MsgID>

<RequestMsgID>#32aa</RequestMsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

<RecordCount>1</RescordCount>

</ResponseHead>

<Number>102</Number>

</K12Response>



Relationship

<Relationship code=x>

Description:

Identifies the relationship of a contact to the student or teacher who is associated to that contact. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

code=x

Specifies the SPEEDE/EXPRESS contact code

01 Spouse

02 Son or Daughter

03 Father or Mother

04 Grandfather or Grandmother

05 Grandson or Granddaughter

06 Uncle or Aunt

07 Nephew or Niece

08 Cousin

09 Adopted Child

10 Foster Child

11 Son-in-law or Daughter-in-law

12 Brother-in-law or Sister-in-law

13 Mother-in-law or Father-in-law

14 Brother or Sister

15 Ward

17 Stepson or Stepdaughter

18 Self

19 Child

20 Employee

21 Unknown

22 Handicapped Dependent

23 Sponsored Dependent

24 Dependent of a Minor Dependent

25 Ex-spouse

26 Guardian

27 Student

28 Friend

29 Significant Other

30 Both Parents

31 Court Appointed Guardian

32 Mother

33 Father

34 Other Adult

37 Agency Representative

48 Stepfather

49 Stepmother

50 Foster Parent

51 Emergency Contact

52 Employer

53 Life Partner

55 Adopted Daughter

56 Adopted Son

57 Adoptive Father

58 Adoptive Mother

59 Adoptive Parents

61 Aunt

62 Brother

63 Brother-in-Law

74 Daughter

75 Daughter-in-Law

76 Dependent

79 Ex-wife

80 Family Member

81 Father-in-Law

82 Fiancé (Male)

83 Financée (Female)

86 Foster Daughter

87 Foster Father

88 Foster Mother

90 Foster Son

97 Grandfather

98 Grandmother

99 Grandparents

A2 Great Aunt

A3 Ex-husband

A4 Hlf Brother

A5 Half Sister

A6 Husband

A9 Mother-in-Law

B1 Nephew

B2 Niece

B3 Parents-in-Law

B4 Partnership

B5 Partner

B7 Sister

B8 Sister-in-Law

C1 Son

C2 Son-in-Law

C3 Step Brother

D3 Uncle

D4 Wife

D5 Teacher

D6 School Counselor

D7 School Principal

D8 Other School Administrator

D9 Coach

E1 Activity Sponsor

E2 Supervisor

E4 Minister or Priest

E5 Ecclesiastical or Religious Leader

E7 Probation Officer

E9 Advisor

G2 Educator/Teacher/Instructor

G6 Medical Care Provider

G8 Other Relationship

G9 Other Relative

ZZ Mutually Defined

Required





Example:

<Contact id="k0023 type="emergency">

<ContactName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</ContactName>

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL">
<Zip>60434</Zip>

</Address>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/>
<Relationship code="03"/>

</Contact>



RequestHead

<RequestHead>

Description:

Identifies header information for a K12 request. The head is made up of a unique identifier for tracking purposes, a date and time, and a source. See example below.

Required Attributes:

None

Example:

<K12Request>

<RequestHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</RequestHead>

<XMLQuery> This is the query </XMLQuery>

</K12Request>





RequestMsgID

<RequestMsgID>

Description:

Specifies the identifier of the K12 request which is being responded to. This is part of the <K12Response> header. See example below.

Required Attributes:

None

Example:

<K12Response>

<ResponseHead>

<MsgID>#40250</MsgID>

<RequestMsgID>#32aa</RequestMsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

<RecordCount>4</RescordCount>

</ResponseHead>

<ResponseData>
<LastName>Sharma</LastName>

<LastName></LastName>
<LastName>Kennedy</LastName>
</ResponseData>

</K12Response>

ResponseData

<ResponseData>

Description:

Identifies the data return from a K12 request. Response data may contain text or any element defined as part of the K12 Framework tag set. See example below.

Required Attributes:

None

Example:

<K12Response>

<ResponseHead>

<MsgID>#40250</MsgID>

<RequestMsgID>#32aa</RequestMsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

<RecordCount>4</RescordCount>

</ResponseHead>

<ResponseData>
<PartialStudentUpdate>

<StudentID href="#k0023"/>

<HomeRoom>23</HomeRoom>

<GradeLvl>12</GradeLvl>

</PartialStudentUpdate>

<PartialStudentUpdate>

<StudentID href="#k0024"/>

<HomeRoom>13</HomeRoom>

<GradeLvl>12</GradeLvl>

</PartialStudentUpdate>

</ResponseData>

</K12Response>





ResponseHead

<ResponseHead>

Description:

Identifies the header of a K12 Response. This contains a unique message id, the identifier of the message that is being responded to, date, time, source, and the number of records in the response. See example below.

Required Attributes:

None

Example:

<K12Response>

<ResponseHead>

<MsgID>#40250</MsgID>

<RequestMsgID>#32aa</RequestMsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

<RecordCount>1</RescordCount>

</ResponseHead>

<Number>102</Number>

</K12Response>



School

<School ID=x code=x>

Description:

Identifies the school object. This is made up of school name, address, phone numbers, district numbers, associated student IDs, and associated teacher IDs. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

ID=x

Specifies the unique school identifier

String of text

Required

Code=x

Specifies the SPEEDE/EXPRESS code for the School

HS High School

VU Elementary

School

VQ Middle School VR Junior High

Required

Example:

<School id="k2345" code="HS">
<SchoolName>York High School</SchoolName>
<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<DistrictNbr>544</DistrictNbr>

<StudentID href="#6712"/> . . .

<TeacherID href="#4532a"/> . . .

</School>



SchoolID

<SchoolID href=x>

Description:

Identifies a link to school information. The href= attribute links to the ID value on the school object. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

href=x

Specifies the link to a school

A unique identifier

Required

Example:

<PartialStudentUpdate>

<StudentID href="#k0023"/>

<HomeRoom>23</HomeRoom>

<GradeLvl>12</GradeLvl>

<ContactID href="#33426"/>

</PartialStudentUpdate>





SchoolName

<SchoolName>

Description:

Identifies the formal school name. See example below.

Required Attributes:

None

Example:

<School id="k2345" code="HS">
<SchoolName>York High School</SchoolName>
<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<DistrictNbr>544</DistrictNbr>

<StudentID href="#6712"/> . . .

<TeacherID href="#4532a"/> . . .

</School>



SchoolUpdate

<SchoolUpdate>

Description:

Identifies an event which provides complete updates or enters new updates to school information databases. This event may consist of one or more <School> information objects. See example below.

Required Attributes:

None

Example:

<SchoolUpdate>

<School id="k2345" code="HS">
<SchoolName>York High School</SchoolName>
<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<DistrictNbr>544</DistrictNbr>

<StudentID href="#6712"/> . . .

<TeacherID href="#4532a"/> . . .

</School>

<SchoolUpdate>



SchoolYear

<SchoolYear>

Description:

Identifies the school year for which an enrollment change takes effect. See example below.

Required Attributes:

None

Example:

<EnrollStatusChg>

<StudentID href="#k0023"/>

<EffectiveDate>980909</EffectiveDate>

<ChangeReason code="D09"/>

<ChangedStatus code="withdrawn"/>
<SchoolYear>1998</SchoolYear>

</EnrollStatusChg>



Source

<Source>

Description:

Identifies the source of a transaction for K12 Framework. Source is a unique system identifier. See example below.

Required Attributes:

None

Example:

<K12Event>

<MsgHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date><Time zone="PS">10:20:15</Time>

<Source>http://admin.student.com:80/</Source>

</MsgHead>

<EnrollStatusChg> . . . </EnrollStatusChg>

</K12Event>

SSN

<SSN>

Description:

Identifies a social security number. See example below.

Required Attribute:

None

Example:

<PartialStudentUpdate>

<StudentID href="#k0023"/>

<HomeRoom>23</HomeRoom>

<GradeLvl>12</GradeLvl>

<SSN>334-88-7892</SSN>

<ContactID href="#33426"/>

</PartialStudentUpdate>





State

<State code="x">

Description:

Identifies the state portion of an address. This is an empty element and uses the XML empty element syntax. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

code=x

Specifies the state code

AL, AK, AZ, AR, CA, CO, CT, DE, DC, DL, FL, GA, HI, ID, IL, IN, IA, KS, KY, ME, MD, MA, MI, MN, MO, MT, NE, NV, NH, NJ, NM, NY, NC, ND, OH, OK, OR, PA, PR, RI, SC, TN, TX, UT, VT, VA, WA, WV, WI, WY

Required

Example:

<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>



Status

<Status code=x>

Description:

Identifies a studentís enrollment status. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

code=x

Specifies the enrollment status

"enrolled", "withdrawn"

Required

Example:

<Student id="k0023">

<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber> . . . </PhoneNumber>

<StudentName> . . . </StudentName>

<Address> . . . </Address>

<SchoolID href="#s0067" type="secondary"/>

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"/><ImmigrationStatus code="2"/>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/><BirthDate>891209</BirthDate>
<TeacherID href="#78223"/>

<ContactID href="#33425"/>

</Student>

Street

<Street>

Description:

Identifies the street portion of an address. This may consist of the complex, street prefix, street name, street number, street type, street suffix, apartment type, apartment number prefix, apartment number, apartment number suffix, See example below.

Required Attributes:

None

Example:

<Address>

<Street><AptType>Suite</AptType>
<AptNumber>201</AptNumber><AptNumSuffix>B</AptNumSuffix>
<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City><County>Cook</County>

<State code="IL"/><Zip>60434</Zip>

</Address>



StreetName

<StreetName>

Description:

Identifies the street name portion of an address. See example below.

Required Attributes:

None

Example:

<Address>

<Street><AptType>Suite</AptType>
<AptNumber>201</AptNumber><AptNumSuffix>B</AptNumSuffix>
<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>



StreetNumber

<StreetNumber>

Description:

Identifies the street number portion of an address. See example below.

Required Attributes:

None.

Example:

<Address>

<Street>

<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>





StreetPrefix

<StreetPrefix>

Description:

Identifies the street prefix portion of an address. Typically this is a direction (such as N or S). See example below.

Required Attributes:

None

Example:

<Address>

<Street>

<StreetPrefix>N.</StreetPrefix>

<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>



StreetSuffix

<StreetSuffix>

Description:

Identifies the street suffix portion of an address. Typically this is a compound direction (such as NW or SE). See example below.

Required Attributes:

None

Example:

<Address>

<Street>

<StreetNumber>144</StreetNumber>

<StreetName>Washington</StreetName><StreetType>Avenue</StreetType>

<StreetSuffix>NW</StreetSuffix>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>





StreetType

<StreetType>

Description:

Identifies the street type portion of an address (such as Avenue or Court). See example below.

Required Attributes:

None

Example:

<Address>

<Street><AptType>Suite</AptType>
<AptNumber>201</AptNumber><AptNumSuffix>B</AptNumSuffix>
<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL">
<Zip>60434</Zip>

</Address>





Student

<Student id=x>

Description:

Identifies the student as a data object. Student consists of an optional barcode, optional homeroom, one or phone numbers, the student name, address, grade level, graduation year, enrollment status, immigration status, an optional social security number, gender, race, birth date, and optional related teacher IDs and contact IDs.

See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

id=x

Specifies the unique student ID

String of text

Required



Example:

<Student id="k0023">

<ElectronicID type="barcode">778899</ElectronicID>

<HomeRoom>23</HomeRoom>
<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<StudentName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</StudentName>

<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL">
<Zip>60434</Zip>

</Address>

<SchoolID href="#s0067" type="secondary"/>

<GradeLvl>11</GradeLvl><GradYear type="original">1998</GradYear>
<Status code="enrolled"><ImmigrationStatus code="2">

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/><BirthDate></BirthDate><TeacherID href="#78223">

<ContactID href="#33425">

</Student>



StudentID

<StudentID href=x>

Description:

Identifies a link to a set of student information. The href attribute links by matching the ID attribute on <Student>. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

href=x

Specifies the link to student information

String of text

Required

Example:

<School id="k2345" code="HS">
<SchoolName>York High School</SchoolName>
<Address> . . . </Address>

<PhoneNumber> . . . </PhoneNumber>

<DistrictNbr>544</DistrictNbr>

<StudentID href="#6712"> . . .

<TeacherID href="#4532a"> . . .

</School>



StudentName

<StudentName>

Description:

Identifies the student name. Student name is made up of last name, middle name, and first name. See example below.

Required Attributes:

None

Example:

<StudentName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</StudentName>



StudentUpdate

<StudentUpdate>

Description:

Identifies a student update event. This is made up of a student object. See example below.

Required Attributes:

None

Example:

<StudentUpdate>

<Student id="k0023>

. . .

</Student>

</StudentUpdate>

SubscribeHead

<SubscribeHead>

Description:

Identifies the header of a K12 subscribe transaction. The header contains a message identifier, a date, time and source. The subscribe transaction then contains one or more objects that it wishes to receive. See example below.

Required Attributes:

None

Example:

<K12Subscribe>

<SubscribeHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</SubscribeHead>

<Event type="studentupdate">

<Event type="partialstudentupdate">

<EventUnsubscribe type="schoolupdate">

<EventUnsubscribe type="partialschoolupdate">

</K12Subscribe>



Teacher

<Teacher ID=x type=x>

Description:

Identifies a teacher object. Teacher consists of a Teacher Name, Employee ID, Credentials, DateHired, associated School IDs, HomeRoom, Department, Birth Date, one or more Contact IDs, Phone Numbers , Address , Social Security Number, Gender, and Race. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

id=x

Unique ID of a teacher

String of data

Required

type=x

Type of teacher

substitute, student, fulltime

Required

Example:

<Teacher id="k0023" type="fulltime">

<EmployeeID href="#4587">
<Credentials code="4.1">

<DateHired>960717</DateHired>

<SchoolID href="#s0067" type="secondary">

<HomeRoom>23</HomeRoom>

<Department>Science</Department>

<BirthDate>780914</BirthDate>

<ContactID href="#33425">

<PhoneNumber>

<AreaCode>519</AreaCode><Number>3334455</Number>

</PhoneNumber>

<TeacherName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>

</TeacherName>

<Address>

<Street><StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>

<SSN>330-44-7788<SSN><Gender code="F"/>

<Race code="A"/>

</Teacher>



TeacherID

<TeacherID href=x>

Description:

Identifies a link to teacher information. The href= attribute links to a matching ID on <teacher>. See example below.

Required Attributes:

Attributes

Description

Possible Values

Default

href=x

Specifies the link to a teacher

String of text

Required

Example:

<School id="k2345" code="HS">
<SchoolName>York High School</SchoolName>
<Address> . . . </Address>

<PhoneNumber> . . . </PhoneNumber>

<DistrictNbr>544</DistrictNbr>

<StudentID href="#6712"/> . . .

<TeacherID href="#4532a"/> . . .

</School>

TeacherName

<TeacherName>

Description:

Identifies the teacherís name. See example below.

Required Attributes:

None

Example:

<TeacherName><LastName>Kennedy</LastName>

<MiddleName>Jean</MiddleName><FirstName>Helen</FirstName>
</TeacherName>



TeacherUpdate

<TeacherUpdate>

Description:

Identifies an event which provides complete updates or enters new updates to teacher information databases. This event may consist of one or more <Teacher> information objects. See example below.

Required Attributes:

None

Example:

<TeacherUpdate>

<Teacher ID="34134" type="substitute">

. . . </Teacher>

<Teacher ID="784134">

. . . </Teacher>

</TeacherUpdate>

Time

<Time zone=x>

Description:

Identifies the time a K12 transaction was sent. See example below.

Required Attributes:

Attribute

Description

Possible Values

Default

zone=x

Specifies the SPEEDE/EXPRESS time zone code

Alaska Daylight ="AD"
Alaska Standard ="AS"

Eastern Daylight ="ED"
Eastern Standard ="ES" Central Daylight ="CD"
Central Standard ="CS"

Mountain Daylight ="MD"
Mountain Standard ="MS" Pacific Daylight ="PD"
Pacific Standard ="PS" Hawaii Daylight ="HD"
Hawaii Standard ="HS"

Required

Example:

<K12Event>

<MsgHead>

<MsgID>#40250</MsgID>

<Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time>

<Source>http://admin.student.com:80/</Source>

</MsgHead>

<EnrollStatusChg> . . . </EnrollStatusChg>

</K12Event>



XMLQuery

<XMLQuery>

Description:

Identifies a query field within a K12 request. This is a free text field that contains a query. See example below.

Required Attributes:

None

Example:

<K12Request>

<RequestHead>

<MsgID>#40250</MsgID><Date>10-20-1997</Date>

<Time zone="PS">10:20:15</Time><Source>http://admin.student.com:80/</Source>

</RequestHead>

<XMLQuery> This is the query </XMLQuery>

</K12Request>



Zip

<Zip>

Description:

Identifies the zip code portion of an address. See example below.

Required Attributes:

None

Example:

<Address>

<Street><AptType>Suite</AptType>
<AptNumber>201</AptNumber><AptNumSuffix>B</AptNumSuffix>
<StreetNumber>146</StreetNumber>

<StreetName>Tarpon</StreetName><StreetType>Court</StreetType>
</Street>

<City>Homewood</City>
<County>Cook</County>

<State code="IL"/>
<Zip>60434</Zip>

</Address>



APPENDIX B: XML Ė TAG REFERENCE

The table is organized alphabetically by element name. This table can provide a quick reference for those who quickly want to review elements of the XML tag set.

.

Name

Title

Description

Address

Address

Student Address

AptNumber

Apartment Number

Apartment Number

AptNumPrefix

Apartment Number Prefix

The prefix of an apartment number

AptNumSuffix

Apartment Number Suffix

Apartment Number Suffix

AptType

Apartment Type

This specifies the type of apartment such as suite

AreaCode

Area Code

The area code in the form xxx (3 numeric)



BirthDate

Birth Date

Date of Birth D8 format (CCYYMMDD)

ChangedStatus

Changed Status

New, or changed status

ChangeReason

Change Reason

Reason Code from SPEEDE/EXPRESS

City

City

Free-form text for city name

Complex

Complex

Apartment Complex designation

Contact

Contact

Student Contact information

ContactID

Contact ID

Contact Unique Identifier

ContactName

Contact Name

Contact Name

ContactUpdate

Contact Update

Contact Update Message

County

County

Code identifying the county within a state Note to User: This list is available from the National Technical Information Service, 5285 Port Royal Road, Springfield, VA 22161. SPEEDE/EXPRESS CODE IND04

Credentials

Credentials

SPEEDE/EXPRESS for codes for credential code fields

Date

Date

In the form D8 (CCYYMMDD)

DateHired

Date Hired

Indicates the date hired. D8 format (CCYYMMDD)

Department

Department

Identifies the department to which the teacher reports

DistrictNbr

District Nbr

Identifies the School District

EffectiveDate

Effective Date

Date in D8 format CCYYMMDD

ElectronicID

Electronic Identifier

Student Electronic identifier, may be a barcode, magstripe, or pin

EmployeeID

Employee ID

The teacher's employee ID

EnrollStatusChg

Enroll Status Change

This event specifies a change in enrollment status. Changes include admissions, withdrawls, and graduations

Error

Error

This is a error condition which is returned instead of data or a count

Event

Event



Ext

Ext

This is the extension. This is an alpha numeric field

FirstName

First Name

First name

Gender

Gender

SPEEDE/EXPRESS DMG03

GradeLvl

Grade Level

Identifies the grade level of the student

GradYear

Grad Year

Identifies the graduation year in D8 format YY

HomeRoom

Home Room

Identifies the student home room

IDUpdate

ID Update

A message to indicate a change in an objectís unique identifier

ImmigrationStatus

Immigration Status

Specifies the immigration status SPEEDE/EXPRESS codes

K12Event

K12 Event

The K12 Event Message is sent in response to an event in which data in a K12 educational software application changes. This message is sent to notify other applications of the kind of change and to automatically deliver the changed data.

K12Framework

K12Framework

K12 Message Framework

K12Publish

K12 Publish

K12 Publish data object message

K12Request

K12 Request

A K12 Request is a query from one software application for information from another application

K12Response

K12 Response

The K12 Response is sent by the software application which was requested to send information. The response may contain the information fields which were requested, or may contain reasons why the information could not be returned

K12Subscribe

K12 Subscribe

K12 Subscription Message

K12Unpublish

K12 Unpublish

K12 Withdraw from Publication Message

K12Unsubscribe

K12 Unsubscribe

K12 Withdraw Subscription Message

LastName

Last Name

Last name, may be hyphenated

MiddleName

Middle Name

Middle name field. This is required. If no middle name the field is still required. If two middle names, both go in this field

MsgHead

Message Head

Identifies the source of the message, perhaps the date. This is to be determined at the time of implementation

MsgID

Message ID

This is the unique identifier of this message Generated by the source

NewContactID

New Contact ID

Indicates a new Contact unique identifier

NewSchoolID

New School ID

Indicates a new School unique identifier

NewStudentID

New Student ID

Indicates a new Student unique identifier

NewTeacherID

New Teacher ID

Indicates a new Teacher unique identifier

Number

Number

This field is used to return a count in response to a query

Object

Object

Data Object

PartialContactUpdate

Partial Contact Update

This element contains all contact fields for partial update

PartialSchoolUpdate

Partial School Update

Used to update part of the school information

PartialStudentUpdate

Partial Student Update

This contains any of the student data fields which may make up a partial update

PartialTeacherUpdate

Partial Teacher Update

This element contains all teacher data fields to enable partial update

PhoneNumber

Phone Number

Phone Number

PublishHead

Publish Head

Heading of Publish Message

Race

Race

SPEEDE/EXPRESS DMG05

RecordCount

Record Count

This indicates the number of records being sent or returned

Relationship

Relationship

This specifies the relationship between the contact and the student

RequestHead

RequestHead

This is the header information for the request

RequestMsgID

RequestMsgID

This is used to match the response to the request

ResponseData

ResponseData

Response Data returned to a Query or K12 Request

ResponseHead

ResponseHead

Header for Response messages

School

School

This is the school information object

SchoolID

SchoolID

Unique School Identifier

SchoolName

SchoolName

Official School Name

SchoolUpdate

SchoolUpdate

This message updates school information

SchoolYear

SchoolYear

School Year in D8 format YY

Source

Source

The Network Identifier identifies the sender of the message

SSN

SSN

Social Security number is not a student identifier

State

State

Two letter state code SPEEDE/EXPRESS CODE IND04

Status

Status

Identifies the status of the student in the school, such as enrolled, withdrawn

Street

Street

This is made up of a number of nodes

StreetName

Street Name

Street Name

StreetNumber

Street Number

Address number

StreetPrefix

StreetPrefix

Direction such as N, S, E, W, NW

StreetSuffix

StreetSuffix

Another Direction such as NW, NE

StreetType

Street Type

This is the type of street such as Ave. Street, Blvd

Student

Student

This defines the student object. It will be placed inside messages

StudentID

Student ID

Unique Student Identifier

StudentName

Student Name

Student Name, made up of first name, middle name, last name

StudentUpdate

Student Update

Student Information Update Message

SubscribeHead

Subscribe Head

Subscription Heading

Teacher

Teacher

Teacher data object

TeacherID

TeacherID

Unique Identifier for a Teacher

TeacherName

Teacher Name

Teacherís name

TeacherUpdate

Teacher Update

Update to Teacher Information

Time

Time

This specifies the Time in

XMLQuery

XMLQuery

This is the actual request, sent as an XQL query

Zip

Zip

Zip Code











APPENDIX C: XML DTD

<!--This represents the framework for communiations protocols in the K-12 environment-->

<?xml version="1.0" encoding="ISO-8859-1"?>

<!DOCTYPE K12Framework [

<!ELEMENT K12Framework (K12Event | K12Request | K12Response | K12Publish |

K12Subscribe) >

<!--The K12 Message is sent in response to an event in which data in a K12

educational software application changes. This message is sent to notify other applications

of the kind of change and to automatically deliver the changed data.-->

<!ELEMENT K12Event (MsgHead,(EnrollStatusChg+ | StudentUpdate+ |

PartialStudentUpdate+ | TeacherUpdate+ | PartialTeacherUpdate+ |

ContactUpdate+ | PartialContactUpdate+ | SchoolUpdate+ |

PartialSchoolUpdate+ | IDUpdate)) >

<!--Identifies the source of the message, perhaps the date.

This is to be determined at the time of implementation-->

<!ELEMENT MsgHead (MsgID,Date,Time,Source,RecordCount) >

<!--This is the unique identifier of this message

Generated by the source-->

<!ELEMENT MsgID (#PCDATA) >

<!--In the form D8 (CCYYMMDD)-->

<!ELEMENT Date (#PCDATA) >

<!--This specifies the Time in-->

<!ELEMENT Time (#PCDATA) >

<!--AD = Alaska Daylight

AS = Alaska Standard

ED = Eastern Daylight

ES = Eastern Standard

CD = Central Daylight

CS = Central Standard

MD = Mountain Daylight

MS = Mountain Standard

PD = Pacific Daylight

PS = Pacific Standard

HD = Hawaii Daylight

HS = Hawaii Standard-->

<!ATTLIST Time

zone (AD | AS | ED | ES | CD | CS | MD | MS | PD | PS | HD | HS)

#REQUIRED >

<!--The Network Identifier identifies the sender of the message-->

<!ELEMENT Source (#PCDATA) >

<!--This indicates the number of records being sent or returned-->

<!ELEMENT RecordCount (#PCDATA) >

<!--This event specifies a change in enrollment status. Changes include admissions, withdrawls,

and graduations-->

<!ELEMENT EnrollStatusChg (StudentID,EffectiveDate,ChangeReason,ChangedStatus,

SchoolYear) >

<!ELEMENT StudentID EMPTY >

<!--the #href value matches the ID value on <student>-->

<!ATTLIST StudentID

href CDATA #REQUIRED >

<!ELEMENT NewStudentID EMPTY >

<!--the #href value matches the ID value on <student>-->

<!ATTLIST NewStudentID

href CDATA #REQUIRED >



<!--Date in D8 format CCYYMMDD-->

<!ELEMENT EffectiveDate (#PCDATA) >

<!--Reason Code from SPEEDE/EXPRESS-->

<!ELEMENT ChangeReason EMPTY >

<!--B27 Student is eligible to continue or return or both

B28 Student is on suspension or dismissal

B29 Student is expelled (from PreK - grade 12)

B31 Not currently enrolled

B38 Dropped

B39 Academic Probation

B40 Suspended

B51 Student on Suspension or Dismissal; Eligible to Apply for Re-entry

B52 According to established regulations or statutes

D03 Student has attended a nonpublic school or home education program in- or out-of-state this year

D04 Student was received from another attendance reporting unit in the same school

D05 Student was received from a school in the same district

D06 Student was received from another public school outside the district either in- or out-of-state

D07 Student was received from a nonpublic school either in or out of the district or has returned after having been enrolled in a home education program; The student must have been enrolled previously in a public school this year

D08 Student unexpectedly reentered the same school after withdrawing or being discharged

D09 Student was expected to attend a school but did not enter as expected for unknown reasons

D10 Student was promoted, retained, or transferred to another attendance-reporting unit in the same school

D11 Student was promoted, retained, or transferred to another school in the same district

D12 Student withdrew to attend another public school in the same district

D13 Student withdrew to attend another public school in- or out-of-state

D14 Student Over Compulsory Attendance Age Left School Voluntarily with No Intention of Returning

D15 Student Graduated from School with a Standard Diploma

D16 Student Graduated from School with a Special Diploma

D17 Student Left School with a Certificate of Completion

D18 Student Left School with a Special Certificate of Completion

D19 Student Left School with a State General Education Development (GED) High School Diploma

D20 Student Withdrew to Attend a Non-Public School or Home Education Program In- or Out-of-State.

D21 Student withdrew from school due to hardship

D22 Student has not entered any school in this or any other state this school year

D23 Previously attended out-of-state public school but is entering a public school in this state for the first time this school year

D24 Returned to Regular Education Program

EB1 Deceased

EB3 Withdrawn

EB4 Graduated

-->

<!ATTLIST ChangeReason

code (B27 | B28 | B29 | B31 | B38 | B39 | B40 | B51 | B52 | D03 |

D04 | D05 | D06 | D07 | D08 | D09 | D10 | D11 | D12 | D13 | D14 |

D15 | D16 | D17 | D18 | D19 | D20 | D21 | D22 | D23 | D24 | EB1 |

EB3 | EB4) #REQUIRED >

<!--New, or changed status-->

<!ELEMENT ChangedStatus EMPTY >

<!ATTLIST (ChangedStatus,Status)

code (enrolled | withdrawn) #REQUIRED >

<!--School Year in D8 format YY-->

<!ELEMENT SchoolYear (#PCDATA) >

<!ELEMENT StudentUpdate (Student) >

<!--This defines the student object. It will be placed inside messages-->

<!ELEMENT Student (ElectronicID
?,HomeRoom,PhoneNumber*,StudentName,Address,SchoolID+GradeLvl,GradYear+,Status,ImmigrationStatus,SSN,Gender,Race,

BirthDate,TeacherID*,ContactID+) >

<!ATTLIST Student

id ID #REQUIRED >

<!ELEMENT ElectronicID(#PCDATA) >

<!ATTLIST ElectronicID

type (barcode| magstripe) #REQUIRED >

<!--Identifies the student home room-->

<!ELEMENT HomeRoom (#PCDATA) >

<!--Phone Number-->

<!ELEMENT PhoneNumber (AreaCode,Number,Ext?) >

<!ATTLIST PhoneNumber

type (primary | secondary) #REQUIRED >

<!--The area code in the form xxx (3 numeric)-->

<!ELEMENT AreaCode (#PCDATA) >

<!--This field is used to return a count in response to a query-->

<!ELEMENT Number (#PCDATA) >

<!--This is the extension. This is an alpha numeric field-->

<!ELEMENT Ext (#PCDATA) >

<!ELEMENT StudentName (LastName,FirstName,MiddleName) >

<!--Last name, may be hyphenated-->

<!ELEMENT LastName (#PCDATA) >

<!--First name-->

<!ELEMENT FirstName (#PCDATA) >

<!--Middle name field. This is required. If no middle name the field is still required. If two middle names, both go in this field-->

<!ELEMENT MiddleName (#PCDATA) >

<!--Student Address-->

<!ELEMENT Address (Street,City,County,State,Zip) >

<!--This is made up of a number of nodes-->

<!ELEMENT Street (Complex?,StreetNumber?,StreetPrefix?,StreetName,StreetType?,

StreetSuffix?,AptType?,AptNumPrefix?,AptNumber?,AptNumSuffix?) >

<!--Apartment Complex designation-->

<!ELEMENT Complex (#PCDATA) >

<!ELEMENT StreetNumber (#PCDATA) >

<!--Direction such as N, S, E, W, NW-->

<!ELEMENT StreetPrefix (#PCDATA) >

<!ELEMENT StreetName (#PCDATA) >

<!--This is the type of street such as Ave. Street, Blvd-->

<!ELEMENT StreetType (#PCDATA) >

<!--Another Direction such as NW, NE-->

<!ELEMENT StreetSuffix (#PCDATA) >

<!--This specifies the type of apartment such as suite-->

<!ELEMENT AptType (#PCDATA) >

<!--The prefix of an apartment number-->

<!ELEMENT AptNumPrefix (#PCDATA) >

<!--Apartment Number-->

<!ELEMENT AptNumber (#PCDATA) >

<!--Apartment Number Suffix-->

<!ELEMENT AptNumSuffix (#PCDATA) >

<!--Free-form text for city name-->

<!ELEMENT City (#PCDATA) >

<!--Code identifying the county within a state

Note to User: This list is available from the National Technical Information Service, 5285 Port Royal Road, Springfield, VA 22161.

SPEEDE/EXPRESS CODE IND04-->

<!ELEMENT County (#PCDATA) >

<!--Two letter state code

SPEEDE/EXPRESS CODE IND04-->

<!ELEMENT State EMPTY >

<!ATTLIST State

code (AL | AK | AZ | AR | CA | CO | CT | DE | DC | DL | FL | GA | HI |

ID | IL | IN | IA | KS | KY | ME | MD | MA | MI | MN | MO | MT | NE |

NV | NH | NJ | NM | NY | NC | ND | OH | OK | OR | PA | PR | RI | SC |

TN | TX | UT | VT | VA | WA | WV | WI | WY) #IMPLIED >

<!ELEMENT Zip (#PCDATA) >

<!ELEMENT SchoolID (#PCDATA) >

<!ATTLIST SchoolID

type (primary | secondary) #REQUIRED

href CDATA #REQUIRED >

<!ELEMENT NewSchoolID (#PCDATA) >

<!ATTLIST NewSchoolID

type (primary | secondary) #REQUIRED

href CDATA #REQUIRED >



<!--Identifies the grade level of the student-->

<!ELEMENT GradeLvl (#PCDATA) >

<!--Identifies the graduation year in D8 format YY-->

<!ELEMENT GradYear (#PCDATA) >

<!ATTLIST GradYear

type (original | projected) #REQUIRED >

<!--Identifies the status of the student in the school, such as enrolled, withdrawn

-->

<!ELEMENT Status EMPTY >

<!--Specifies the immigration status SPEEDE/EXPRESS codes-->

<!ELEMENT ImmigrationStatus EMPTY >

<!--1 U.S. Citizen

2 Non-Resident Alien

3 Resident Alien

4 Illegal Alien

5 Alien

6 U.S. Citizen - Non-Resident

7 U.S. Citizen - Resident

8 Citizen

9 Non-citizen with Student Authorization

A Non-permanent Resident Alien

B Permanent Visa

C Temporary Visa

-->

<!ATTLIST ImmigrationStatus

code (1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | A | B | C) #REQUIRED >

<!--Social Security number is not a student identifier-->

<!ELEMENT SSN (#PCDATA) >

<!--SPEEDE/EXPRESS DMG03-->

<!ELEMENT Gender EMPTY >

<!--M = Male

F = Female

U= Unknown-->

<!ATTLIST Gender

code (U | F | M) #REQUIRED >

<!--SPEEDE/EXPRESS DMG05-->

<!ELEMENT Race EMPTY >

<!--7 Not Provided

A Asian or Pacific Islander

B Black

C Caucasian

D Subcontinent Asian American

E Other Race or Ethnicity

F Asian Pacific American

G Native American

H Hispanic

I American Indian or Alaskan Native

J Native Hawaiian

N Black (Non-Hispanic)

O White (Non-Hispanic)

P Pacific Islander

Z Mutually Defined

-->

<!ATTLIST Race

code (7 | A | B | C | D | E | F | G | H | I | J | N | O | P | Z)

#REQUIRED >

<!--Date of Birth D8 format (CCYYMMDD)-->

<!ELEMENT BirthDate (#PCDATA) >

<!ELEMENT TeacherID EMPTY >

<!--href links to the ID on the Teachert ID element via the href mechanism

syntax is href="#id" to match the ID-->

<!ATTLIST TeacherID

period CDATA #REQUIRED

href CDATA #REQUIRED >

<!ELEMENT NewTeacherID EMPTY >

<!--href links to the ID on the Teachert ID element via the href mechanism

syntax is href="#id" to match the ID-->

<!ATTLIST NewTeacherID

href CDATA #REQUIRED >

<!ELEMENT ContactID EMPTY >

<!--href links to the ID on the Teachert ID element via the href mechanism

syntax is href="#id" to match the ID-->

<!ATTLIST ContactID

href CDATA #REQUIRED >

<!ELEMENT NewContactID EMPTY >

<!--href links to the ID on the Teachert ID element via the href mechanism

syntax is href="#id" to match the ID-->

<!ATTLIST NewContactID

href CDATA #REQUIRED >

<!--This contains any of the student data fields which may

make up a partial update-->

<!ELEMENT PartialStudentUpdate (StudentID,ElectronicID?,HomeRoom?,PhoneNumber*,

StudentName?,Address?,SchoolID*,GradeLvl?,GradYear*,Status?,

ImmigrationStatus?,SSN?,Gender?,Race?,BirthDate?,TeacherID*,

ContactID*) >

<!ELEMENT TeacherUpdate (Teacher) >

<!ELEMENT Teacher (TeacherName,EmployeeID,Credentials,DateHired,SchoolID+,HomeRoom,

Department,BirthDate,ContactID+,PhoneNumber*,Address,SSN,Gender,Race) >

<!ATTLIST Teacher

type (substitute | student | fulltime) #REQUIRED

id ID #REQUIRED >

<!ELEMENT TeacherName (LastName,FirstName,MiddleName) >

<!--The teacher's employee ID-->

<!ELEMENT EmployeeID (#PCDATA) >

<!-- SPEEDE/EXPRESS for codes for credential code fields-->

<!ELEMENT Credentials EMPTY >

<!--2.1 Postsecondary certificate or diploma (less than one year)

2.2 Postsecondary certificate or diploma (one year or more but less than four years)

2.3 Associate Degree (e.g., Associate in Arts, Associate in Science, Associate in Applied Science)

2.4 Baccalaureate Degree

2.5 Baccalaureate (Honours) Degree

2.6 Postsecondary certificate or diploma (one year or more but less than two years)

2.7 Postsecondary certificate or diploma (two years or more but less than four years)

3.1 First Professional Degree

3.2 Post-Professional Degree

4.1 Graduate Certificate

4.2 Master's Degree

4.3 Intermediate Graduate Degree

4.4 Doctoral Degree

4.5 Post-Doctoral Degree

-->

<!ATTLIST Credentials

code (2.1 | 2.2 | 2.3 | 2.4 | 2.5 | 2.6 | 2.7 | 3.1 | 3.2 | 4.1 |

4.2 | 4.3 | 4.4 | 4.5) #REQUIRED >

<!--Indicates the date hired. D8 format (CCYYMMDD)-->

<!ELEMENT DateHired (#PCDATA) >

<!--Identifies the department to which the teacher reports-->

<!ELEMENT Department (#PCDATA) >

<!--This element contains all teacher data fields to enable partial update-->

<!ELEMENT PartialTeacherUpdate (TeacherID,TeacherName?,EmployeeID?,Credentials?,

DateHired?,SchoolID*,HomeRoom?,Department?,BirthDate?,ContactID*,

PhoneNumber*,Address?,SSN?,Gender?,Race?,Relationship?) >

<!--This specifies the relationship between the contact and the student-->

<!ELEMENT Relationship EMPTY >

<!--01 Spouse

02 Son or Daughter

03 Father or Mother

04 Grandfather or Grandmother

05 Grandson or Granddaughter

06 Uncle or Aunt

07 Nephew or Niece

08 Cousin

09 Adopted Child

10 Foster Child

11 Son-in-law or Daughter-in-law

12 Brother-in-law or Sister-in-law

13 Mother-in-law or Father-in-law

14 Brother or Sister

15 Ward

17 Stepson or Stepdaughter

18 Self

19 Child

20 Employee

21 Unknown

22 Handicapped Dependent

23 Sponsored Dependent

24 Dependent of a Minor Dependent

25 Ex-spouse

26 Guardian

27 Student

28 Friend

29 Significant Other

30 Both Parents

31 Court Appointed Guardian

32 Mother

33 Father

34 Other Adult

37 Agency Representative

48 Stepfather

49 Stepmother

50 Foster Parent

51 Emergency Contact

52 Employer

53 Life Partner

55 Adopted Daughter

56 Adopted Son

57 Adoptive Father

58 Adoptive Mother

59 Adoptive Parents

61 Aunt

62 Brother

63 Brother-in-Law

74 Daughter

75 Daughter-in-Law

76 Dependent

79 Ex-wife

80 Family Member

81 Father-in-Law

82 Fiancé (Male)

83 Financée (Female)

86 Foster Daughter

87 Foster Father

88 Foster Mother

90 Foster Son

97 Grandfather

98 Grandmother

99 Grandparents

A2 Great Aunt

A3 Ex-husband

A4 Half Brother

A5 Half Sister

A6 Husband

A9 Mother-in-Law

B1 Nephew

B2 Niece

B3 Parents-in-Law

B4 Partnership

B5 Partner

B7 Sister

B8 Sister-in-Law

C1 Son

C2 Son-in-Law

C3 Step Brother

D3 Uncle

D4 Wife

D5 Teacher

D6 School Counselor

D7 School Principal

D8 Other School Administrator

D9 Coach

E1 Activity Sponsor

E2 Supervisor

E4 Minister or Priest

E5 Ecclesiastical or Religious Leader

E7 Probation Officer

E9 Advisor

G2 Educator/Teacher/Instructor

G6 Medical Care Provider

G8 Other Relationship

G9 Other Relative

ZZ Mutually Defined

-->

<!ATTLIST Relationship

code (01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 |

14 | 15 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 |

29 | 30 | 31 | 32 | 33 | 34 | 37 | 48 | 49 | 50 | 51 | 52 | 53 | 55 |

56 | 57 | 61 | 62 | 63 | 74 | 75 | 76 | 79 | 81 | 82 | 83 | 86 | 87 |

90 | 97 | 98 | 99 | 88 | A2 | A3 | A4 | A5 | A6 | A9 | B1 | B2 | B3 |

B7 | B8 | C1 | C2 | C3 | D3 | D4 | D5 | D6 | D7 | D8 | D9 | E1 | E2 |

E4 | E5 | E7 | E9 | G2 | G6 | G8 | G9 | ZZ) #REQUIRED >

<!ELEMENT ContactUpdate (Contact) >

<!--Student Contact information-->

<!ELEMENT Contact (ContactName,PhoneNumber*,Address,Gender,SSN,Race,Relationship) >

<!ATTLIST Contact

type (emergency | nonemergency) #REQUIRED

id ID #REQUIRED >

<!ELEMENT ContactName (LastName,FirstName,MiddleName) >

<!--This element contains all contact fields for partial update-->

<!ELEMENT PartialContactUpdate (ContactID,ContactName?,PhoneNumber*,Address?,

Gender?,SSN?,Race?,Relationship) >

<!--This message updates school information-->

<!ELEMENT SchoolUpdate (School) >

<!--This is the school information object-->

<!ELEMENT School (SchoolName,PhoneNumber*,Address,DistrictNbr,TeacherID*,StudentID*) >

<!--HS High School

VU Elementary School

VQ Middle School

VR Junior High-->

<!ATTLIST School

id ID #REQUIRED

code (HS | VU | VQ | VR) #REQUIRED >

<!ELEMENT SchoolName (#PCDATA) >

<!--Identifies the School District-->

<!ELEMENT DistrictNbr (#PCDATA) >

<!--Used to update part of the school information-->

<!ELEMENT PartialSchoolUpdate (SchoolID,SchoolName?,PhoneNumber*,Address?,

DistrictNbr?,TeacherID*,StudentID*) >

<!--A K12 Request is a query from one software application for information from another

application-->

<!ELEMENT IDUpdate ((StudentID,NewStudentID)| (TeacherID,NewTeacherID) | (ContactID,NewContactID) | (SchoolID, NewSchoolID)) >

<!ELEMENT K12Request (RequestHead,XMLQuery) >

<!--This is the header information for the request-->

<!ELEMENT RequestHead (MsgID,Date,Time,Source) >

<!--This is the actual request-->

<!ELEMENT XMLQuery (#PCDATA) >

<!--The K12 Response is sent by the software application which was

requested to send information. The response may contain the information fields which were

requested, or may contain reasons why the information could not be returned-->

<!ELEMENT K12Response (ResponseHead,(Error | Number | ResponseData?)) >

<!ELEMENT ResponseHead (MsgID,RequestMsgID,Date,Time,Source,RecordCount) >

<!--This is used to match the response to the request-->

<!ELEMENT RequestMsgID (#PCDATA) >

<!--This is a error condition which is returned instead of data or a count-->

<!ELEMENT Error (#PCDATA) >

<!ELEMENT ResponseData (PartialStudentUpdate+ | PartialContactUpdate+ | PartialTeacherUpdate+ | PartialSchoolUpdate+) >

<!ELEMENT K12Publish (PublishHead,Object+,ObjectDelete+) >

<!ELEMENT PublishHead (MsgID,Date,Time,Source) >

<!ELEMENT Object EMPTY >

<!ATTLIST Object

type (student | teacher | school | contact) #REQUIRED >

<!ELEMENT ObjectDelete EMPTY >

<!ATTLIST ObjectDelete

type (student | teacher | school | contact) #REQUIRED >

<!ELEMENT K12Subscribe (SubscribeHead,Event+,EventUnsubscribe+) >

<!ELEMENT SubscribeHead (MsgID,Date,Time,Source) >

<!ELEMENT Event EMPTY >

<!ATTLIST Event

type (enrollstatus | studentupdate | partialstudentupdate |

contactupdate | partialcontactupdate | schoolupdate |

partialschoolupdate | teacherupdate | partialteacherupdate)

#REQUIRED >

<!ELEMENT EventUnsubscribe EMPTY >

<!ATTLIST EventUnsubscribe

type (enrollstatus | studentupdate | partialstudentupdate |

contactupdate | partialcontactupdate | schoolupdate |

partialschoolupdate | teacherupdate | partialteacherupdate)

#REQUIRED >

]>







APPENDIX D: XML Ė Data Schema

<To Be Added>
