Cover Feature
Federated Search of Scientific Literature
Bruce Schatz,
William Mischo,
Timothy Cole,
Ann Bishop,
Susan Harum,
Eric Johnson,
Laura Neumann
University of Illinois at Urbana-Champaign
Hsinchun Chen,
Dorbin Ng,
University of Arizona
The Illinois Digital Library Project has developed infrastructure for federated repositories -- to index scientific documents (repositories) and search multiple collections as though they form a single collection (federated).
The Digital Libraries Initiative (DLI) project at the University of Illinois at Urbana-Champaign (UIUC) was one of six sponsored by the NSF, DARPA, and NASA from 1994 through 1998. Our goal was to develop widely usable Web technology to effectively search technical documents on the Internet. We concentrated on building an experimental Testbed with tens of thousands of full-text journal articles from physics, engineering, and computer science, and on making these articles available in production over the Internet before they were available in print. Our Testbed used document structure to provide federated search across publisher collections, by merging diverse tags from multiple publishers into a single uniform collection. Our sociology research evaluated the usage of this Testbed by over a thousand UIUC faculty and students. Our technology research moved beyond document structure to document semantics, testing contextual indexing of document content on millions of documents.
DLI TESTBED AND FEDERATED SEARCH
Our Testbed team designed, developed, and evaluated mechanisms to provide effective access to full-text physics and engineering journal articles within an Internet environment. The team, based in the Engineering Library at UIUC, had primary goals to:
Document Collection and Retrieval
The Illinois DLI Testbed supports full text in SGML format, associated article
metadata, and bit-mapped figure images for scientific journal articles. At present
(February 1999), the collection includes 63 journals containing 66,000 articles
from 5 engineering professional societies: American Institute of Physics, American
Physical Society, American Society of Civil Engineers, Institution of Electrical
Engineers, and Institute of Electrical and Electronics Engineers (IEEE) Computer
Society.
Each publisher transmits electronic copies of their journals to us as they go to print, allowing the issues to appear in the Testbed before the hard copies appear in the Library. The production stream is increasing at approximately 2000 articles per month. We achieved a critical mass for useful search in 1997 when the SGML collection reached coverage of 2 years for each journal. For example, the journal this article appears in (Computer) is covered since January 1995.
Our Testbed team developed a Web-based retrieval system, which supports federated search across this collection, called DeLIver (DEsktop LInk to Virtual Engineering Resources). In operation since October 1997, DeLIver has been used by over 1,900 registered UIUC students and faculty, plus designated outside researchers. Detailed transaction logs have been recorded for over 97,000 user search sessions thus far.

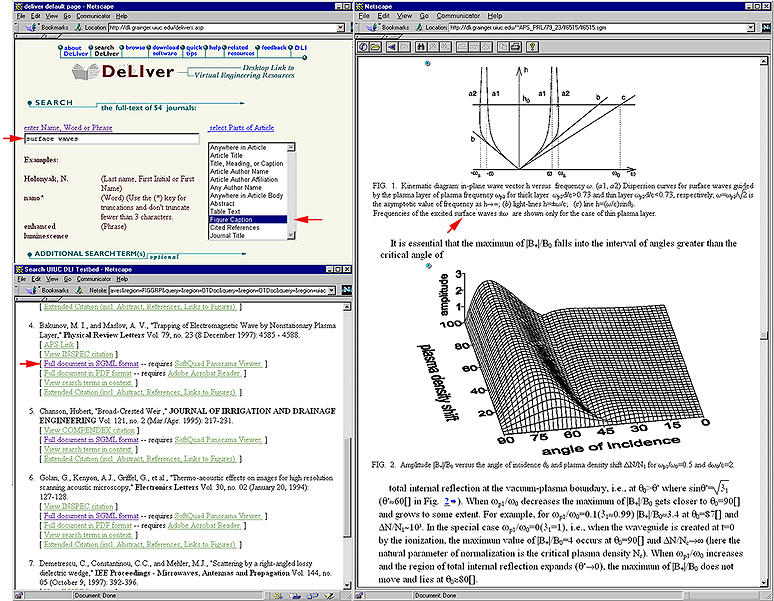

Figure 1 shows a DeLIver search session. The initial screen, in the upper left, prompts the user that parts (structures) of the documents are searchable, and "surface waves" occurring as a figure caption has been requested. The search results appear in the lower left, showing four of the articles retrieved with the requested text phrase occurring in the requested document structure. Note each article is from a different journal, and these journals span multiple publishers. The screen on the right gives a portion of the SGML display for the full-text of the article. The red arrows show that "surface waves" occurs in a figure caption, but not in the title. Note that SGML tags the complete structure of the document, including figures and equations.
Figure 1. DLI Testbed Web-based DeLIver search session, showing the query interface (upper left), the results interface (lower left), and full-text display (right).
Federated Structure Search
A critical element of the Testbed was the effective use of SGML to reveal document structure and produce associated article-level metadata, which homogenizes heterogeneous SGML and allows short-entry display. We take the SGML directly from the publishersÕ collections, converting it to a canonical format for federated searching and transforming tags into a standard set.
The metadata also contains links to internal and external data, such as other Testbed articles and bibliographic abstract databases. The metadata and index files, which contain pointers to the full-text data, are stored independently and separately from the full-text.
With SGML, documents can be treated as objects, allowing viewing, manipulation, and output. For retrieval purposes, SGMLÕs major strength is its ability to reveal a documentÕs component structure. While SGML is becoming ubiquitous in publishing, it is largely generated by publishers as a production by-product. The coming widespread availability of rich markup formats, such as XML (eXtensible Markup Language), a nearly complete instance of SGML, will likely make them the standard for open document systems. Future versions of our Testbed are planning to use XML to represent structure.
The document type definition (DTD), which accompanies each publisherÕs SGML file, specifies the semantics and syntax of the SGML tags. The DTD also specifies the rules for how SGML tags may be applied to the documents, to identify where components occur.
One of hardest problems in successfully deploying the Testbed has been processing heterogeneous DTDs. We developed a number of techniques to address these problems and normalize processing, indexing, storage, retrieval, and rendering. For example, there is a standard canonical set of document tags and all tags from all publishers are heuristically mapped into these.
Distributed Repositories and Links
An important concern was developing effective retrieval models for journals published on the Web. We designed a distributed repository architecture that federates individual publisher repositories of full-text documents. Normalized metadata and index data are extracted from the full text, allowing searches via a parallel execution monitor. This architecture enables standardized and canonical searches of subject and author that are consistent across distributed and disparate repositories.
The Testbed team successfully demonstrated the efficacy of the distributed repository model. We produced cross-DTD metadata, providing parallel database querying and distributed retrieval techniques across a distinguished subset of the full-text repositories. We then installed an off-site repository by cloning the Testbed environment at the actual site of a publisher partner (American Institute of Physics in New York City).
We made significant progress developing a metadata specification to support standardized retrieval across repositories. This allowed for short-entry display independent of the full-text document repositories, and links to associated Testbed items and bibliographic databases. We used SGML tag aliasing for normalization to accommodate heterogeneous DTDs. The DeLIver client supports searching, retrieval, and display across multiple repositories, providing cross-repository retrieval with single searches.
Our innovations include integration of DeLIver with other retrieval services. We implemented INSPEC and Compendex proxies for the Ovid retrieval system with links to the DeLIver Testbed. These proxies enable those databases to be searched with comprehensive coverage for journal abstracts, with transparent link following into the full-text SGML documents when the article is covered by the Testbed. The Testbed also provides: links from the bibliographies of retrieved DeLIver articles to other items in the Testbed, citation links to previous Testbed articles, and links from bibliographic references in retrieved DeLIver articles to INSPEC and Compendex database records.
Multiple View Interfaces
Complete search sessions across multiple sources are necessary to effectively handle scientific literature. Our Testbed provides support for federated searching across document structures from different publisher repositories. The user can use a single high-level structure, such as author or caption, and have it automatically translated into the appropriate SGML tags for each document.
Our experimental user interfaces, which ran in the Engineering Library prior to DeLIver, showed that effective information retrieval for full-text structure search is greatly facilitated by multiple views. Traditional information retrieval has supported only a single view, which sends a query to an index and returns a result. This is the model currently supported within commercial online systems and within World Wide Web searchers. A multiple-view interface supports sessions, with combination across the results of different searches.
We developed an experimental multiple view interface, called IODyne, which seamlessly integrates many different kinds of indexes with drag-and-drop between screen windows for search indexes. 1 Such a client is the paradigm for the next generation of search systems on the Web, where multiple indexes for different purposes can be easily combined within an entire session. IODyne supports text search of full-text SGML via the Testbed and of bibliographic abstracts via Ovid.
This text search can be boosted by term suggestion, where the user specifies a broad query and the system returns related terms to be interactively selected for future queries. IODyne supports term suggestion via subject thesauri, such as the INSPEC thesaurus, and via concept spaces, which are automatically generated thesauri provided by the Research Technology, as discussed below.
Testbed Partners and Continuance
The collaborative relationship between the Testbed team and its publishing partners was particularly strong Ð they grew to refer to and rely on us as their "R&D" arm. The strong partnering relationship is evidenced by the agreement between the DLI project and the publisher partners to initiate a Collaborative Partners Program, whose funding is enabling the continuation of the Testbed beyond the DLI grant period. The Engineering Library is also a recipient of a three-year grant from DARPA, to continue the SGML Testbed for evaluation purposes.
These new funds will allow the Testbed team to continue investigating issues connected with full-text article indexing, interface design, retrieval, and rendering. Continued contributions of materials from the publishing partners will allow for the increase of both the depth and breadth of the digital collection. Plans are also underway to extend Testbed access to the Big Ten University Consortium throughout the Midwest, to enlarge the user population, and further develop the distributed repository model.
TESTBED EVALUATION AND SOCIOLOGY RESEARCH
Our social science team pursued an integrated investigation of the social practices of digital libraries.2 Throughout the project, we carried out user studies and evaluations aimed at improving the DLI Testbed. We also documented and analyzed the extent and nature of Testbed use, satisfaction, and impacts regarding engineering work and communication. These efforts informed our broader contributions to knowledge about engineering work, use of scientific and engineering journals, and the changing information infrastructure.
We pursued several research threads that are relevant to understanding social practices associated with the development and use of federated repositories of structured documents: article disaggregation during knowledge construction, user understanding of newly encountered digital libraries, convergence of communities of practice with information artifacts, resolution of digital library visions held by different stakeholders.
In our research, we carefully adapted traditional social science methods to studying social phenomena involving information systems. We employed a variety of qualitative and quantitative techniques for collecting and analyzing data, including:
In addition, we initiated computer-mediated data-gathering techniques, such as user registration and exit polls after sessions. We have considered results from all these methods to triangulate our findings and provide a deeper understanding of the nature of digital library use and social phenomena involved.
Analysis of DeLIver Users and Use
Users are required to fill out an online demographic questionnaire to register for a DeLIver login. These questionnaires were analyzed when the registrations reached 1,200 UIUC faculty, staff, and students. Half of these users are graduate students, who also account for the most searches. About 75 percent of users are men, most in the 23 to 29 age bracket. Faculty members are a small, but intense, segment of users.
DeLIver users cover a wide spectrum, representing all campus engineering disciplines, science-related fields (such as ecological modeling and biology), and fields such as communications and psychology. We found, however, that most usersÕ backgrounds reflect the TestbedÕs contents, which concentrates on journals from physics, civil engineering, electrical engineering, and computer science.
A preliminary analysis of recently completed user surveys (N = 226) suggests that people are generally satisfied with our system. The mean responses to three separate questions meant to gauge peopleÕs reaction to DeLIver was 3.5 (where 1 corresponded to "terrible," "frustrating," and "inadequate search power" and 5 corresponded to "wonderful," "satisfying," and "adequate search power").
DeLIver transaction logs reveal the use of various system features. Analysis of more than 4,200 sessions indicates that about 20 percent of sessions used the extended citation screen, while 38 percent of sessions viewed the full text of the article. In usability interviews, we found that usersÕ ability to view full text was limited by the fact that they had to first download additional software (an SGML plug-in) to view it.
Use of Document Structure
Given the nature of searching and display made possible through the use of SGML, we explored how researchers use journal components --such as abstracts, figures, equations, or bibliographic citations -- in their work.3 We identified five basic purposes for article components:
Engineers describe a common pattern for utilizing document components by zooming in on and filtering information in their initial reading of an article. They tend to first read the title and abstract, then skim section headings. Next, they look at lists, summary statements, definitions, and illustrations, before zeroing in on key sections, reading conclusions, and skimming references.
But engineers pursue unique practices after this initial reading, as they disaggregate and reaggregate article components for use in their own work. Everyone takes scraps or reusable pieces of information from the article, but they do this differentlyÑperhaps by using a marker to highlight text portions of interest or by making a mental register of key ideas.
Engineers then create some kind of transitory compilation of reusable pieces, such as a personal bibliographic database, folders containing the first page of an article stapled to handwritten notes, or a pile of journal issues with key sections bookmarked. These intellectual and physical practices associated with component use seem to be based on a combination of tenure in the field, the nature of the task at hand, personal work habits, and cognitive style.
Use of Digital Libraries
Our digital library also allowed us to step back and take a broader look at the use of online digital collections and how people attempt to make sense of them. In analyzing results from several different data collection efforts, we found that users can be confused by a newly encountered digital library, and that it takes some time and interaction for them to figure out what a particular system, like DeLIver, is.
In usability tests, we identified patterns of user actions designed to uncover what sort of system our Testbed was and what it could do. What first appeared to be random trial-and-error use of the interface was actually structured exploration, which occurred frequently across sessions. Such exploration is a cut-and-try approach.4 Situating usage in the real world forced us to think about who our most likely audience was, what they were probably most interested in using our system for, and how best to reach them.
SEMANTIC INDEXING AND TECHNOLOGY RESEARCH
Improving Web searching beyond full-text retrieval requires using document structure in the short term and document semantics in the long term. Our technology research team focused on developing new infrastructure for our vision of the future Internet, termed the Interspace, where each community indexes its own repository of its own knowledge.5 For community amateurs to provide classification comparable to todayÕs trained professionals, information infrastructure must provide substantial support for semantic indexing and retrieval.
The Interspace focuses on scalable technologies for semantic indexing that work generically across all subject domains.6 We can automatically generate analogues of concepts and categories. We can use concept spacesÑcollections of abstract concepts generated from concrete objectsÑto boost searches by interactively suggesting alternative terms.7,1 We can use category maps to boost navigation by interactively browsing clusters of related documents.8
Scalable Semantics
Scalable semantics is our term for the new technologies that can index the semantics of document contents on large collections. The algorithms rely on statistical techniques, which correlate the context of phrases within the documents. For example, concept spaces use text documents as the objects and noun phrases as the concepts. The concept spaces are then the co-occurrence frequencies between related terms within the documents of a collection.
Over the past several years, using DLI materials, we have used NCSA supercomputers to compute concept spaces for progressively larger collections9, until the scale of entire disciplines, such as engineering, has been reached. By partitioning a large existing collection into discipline sub-collections, which are the equivalent of community repositories, we use supercomputers to simulate the future world of a billion repositories.
In 1995 we generated concept spaces for 400,000 abstracts from INSPEC (deep coverage in physics, electrical engineering, and computer science), and in 1996 we generated concept spaces for 4,000,000 abstracts from Compendex (broad coverage across all of engineering, some 38 subject disciplines). The first computation took one day of supercomputer time, and the second took 10 days of high-end time on the HP Convex Exemplar. The second computation provided a comprehensive simulation of community repositories for 1,000 collections across all of engineering, generated by partitioning the abstracts along the subject classification hierarchy. 5
Concept Spaces and Document Search
The Interspace consists of multiple spaces at the category, concept, and object levels. Within the course of an interaction session, users will move across different spaces at different levels of abstraction and across different subject domains. For example, the system enables users to locate desired terms in the concept space by starting from broad terms then traversing into narrow terms specific to that document collection. They can then move across into document space to perform full-text searches by dragging the concept term into the document space search window.

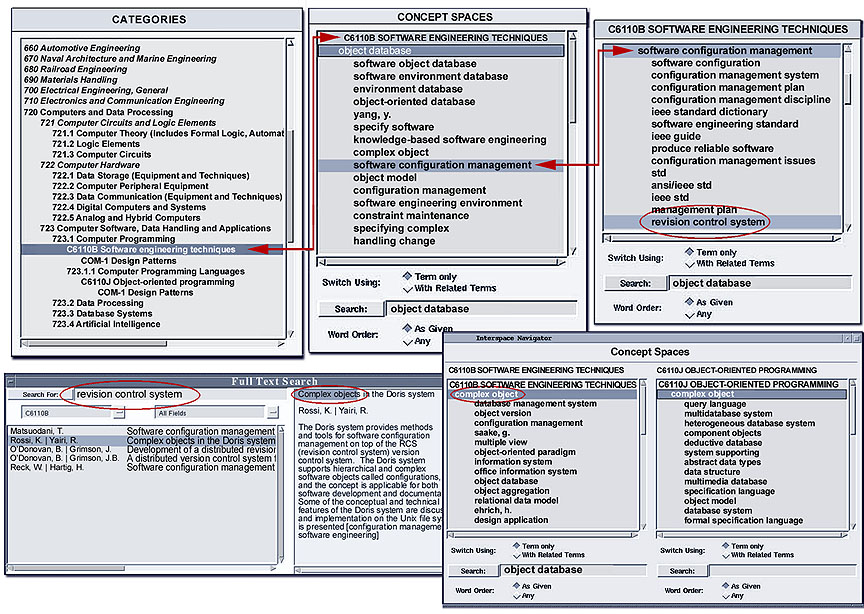

Figure 2 is a composite of a session with an experimental Interspace containing concept spaces for engineering literature.10 The different windows sampled in this session illustrate abstract indexes for categories and concepts, plus indexes for documents within collections.
Figure 2. An Interspace Navigator for engineering literature, showing concept spaces for community repositories, with upper windows illustrating term suggestion using concept spaces and lower windows illustrating document search leading the user to concept switching across subject domains.
The upper left window shows an integrated list of categories for the INSPEC, Compendex, and Patterns collections. INSPEC and Compendex are standard commercial bibliographic databases, and Patterns is a software engineering community repository. These categories can be selected to retrieve a concept space for a specified subject domain. The upper middle window shows portions of a concept space for the INSPEC category "Software Engineering Techniques". The concept space allows the user to interactively refine a search by selecting from related concepts. The user specified the general term "object database" and the system returned a list of specific terms, such as "software configuration management."
The user wishes to locate an even more specific term related to the "use of object-oriented databases in software engineering" to search for. The upper right window shows a further navigation of the concept space, listing related terms of "software configuration management", which was selected from the previous related list. The very specific term "revision control system" is located and used immediately by dragging it into the Full-Text Search window.
This window at the lower left has two panes showing the results of the query for "revision control system". The left pane lists the articles from the "Software Engineering Techniques" collection mentioning the term, while the right pane displays the abstract of a selected article. Note a specific article about "software objects in configuration management" has been found, by navigating the concept space of terms starting from the broad "object database", without being required to ever type a specific search term from memory.
Vocabulary Switching across Concept Spaces
Finally, to search a subject domain they are unfamiliar with, users can begin within the concept space for a familiar subject domain, then choose another concept space for the unfamiliar domain and navigate across spaces based on common terms. This interactive vocabulary exploration is our approach to vocabulary switching, the classic information retrieval problem of different terms for the same concepts across different subject domains. 11
In Figure 2, for example, the user has navigated across concept spaces in the upper windows to locate a specific document on "revision control" in "configuration management" that discusses "software objects". To further investigate the use of object-oriented techniques, they select "complex object" from the title of the article displayed in the lower right window and drag this term back into the concept space window for "Software Engineering". This action switches the level of abstraction from documents (objects) to terms (concepts).
The lower right window displays the related terms for "complex object" within "Software Engineering", in the left pane. Scanning this term list, the user now realizes that they want even more detailed information about object-oriented techniques than seem to be available in this collection. So they move up another level of abstraction (from concepts to categories) and select the category for "Object-Oriented Programming" from the Categories window.
A vocabulary switch is now performed between the domains of "Software Engineering Techniques" and "Object-Oriented Programming". The user drags "complex object" from one domain pane to another Ð the lower right window is the result. The right pane (at the lower rightmost side) shows the related terms for "complex object" within "Object-Oriented Programming". Note this related term list is different than that for the same term in "Software Engineering" since the collections are different (so the commonly occurring terms will be different). This new term list can then be scanned to select specific terms related to "software objects and configuration management" to use in searching any of the available collections.
Such a fluid flow across levels and subjects supports semantic interoperability. This vocabulary switching by interactive navigation across concept spaces illustrates why the system is named the Interspace. Interspace navigation enables location of documents with specific concepts without previously knowing the terms within the documents. We are constructing and using a fully-fledged Interspace Prototype with semantic indexing and space navigation for community repositories in engineering and medicine.12
Both the Testbed and the Research efforts of the UIUC DLI project achieved major success.
The Testbed efforts built a production system with federated search across structured documents. The articles arrive in a production stream directly from major scientific publishers in full-text SGML and are fully federated at the DTD level with a web interface. The Testbed collection is currently the largest federated repository of SGML articles from scientific literature anywhere. The Testbed users represent an order of magnitude bigger population than the last generation research system for search of scientific literature. The Testbed evaluation performed comprehensive fine-grain methodologies such as user interviews and large-scale such as transaction logs. Such results will shortly lead to commercial technologies for federating structured documents across the Internet.
The Research efforts built an experimental system with semantic indexes from document content. Concept spaces are generated for term suggestion and integrated with text search via a multiple view interface. Vocabulary switching is supported by interactive navigation across concept spaces. The Research computations are the largest ever in information science. They represent the first time that semantic indexes using generic technology have been generated on discipline-scale collections with millions of documents. They are the first large-scale step towards scalable semantics, statistical indexes with domain-independent computations.
The Future Net
The Net of the 21st century will radically transform how we interact with knowledge. Traditionally, online information has been dominated by data centers with large collections indexed by trained professionals. The rise of the World Wide Web and the information infrastructure of distributed personal computing have rapidly developed the technologies of collections for independent communities. In the future, online information will be dominated by small collections maintained and indexed by community members themselves.
The information infrastructure must similarly be radically different to support indexing of community collections and searching across such small collections. The base infrastructure will be knowledge networks rather than transmission networks. Users will consider themselves to be navigating in the Interspace, across logical spaces of semantic indexes, rather than in the Internet, across physical networks of computer servers.
Future knowledge networks will rely on scalable semantics, on automatically indexing the community collections so that they can effectively searched within the Interspace of a billion repositories. The most important feature of the infrastructure is therefore support of semantic correlation across the indexed collections. Just as the transmission networks of the Internet are connected via switching machines that switch packets, the knowledge networks of the Interspace will be connected via switching machines that switch concepts.
This work was supported by the NSF, DARPA, and NASA under Cooperative Agreement No. NSF-IRI-94-11318COOP. We thank the American Institute of Physics, the American Physical Society, the American Society of Civil Engineers, the IEEE Computer Society, and the Institution of Electrical Engineers for making their SGML materials available to us on an experimental basis. Engineering Index and IEE kindly provided Compendex and INSPEC, respectively. Indexing was done on Hewlett-Packard servers, obtained through an educational grant program.
Many people have contributed to the research discussed here. In particular, we thank Robert Wedgeworth, Kevin Powell, Ben Gross, Donal O'Connor, Robert Ferrer, Tom Habing, Hanwen Hsiao, Heidi Kellner, Emily Ignacio, Cecelia Merkel, Bob Sandusky, Eric Larson, S. Leigh Star, Pauline Cochrane, Andrea Houston, Melanie Loots, Larry Jackson, Mike Folk, Kevin Gamiel, Joseph Futrelle, Roy Campbell, Robert McGrath, Duncan Lawrie, Leigh Estabrook.
Bruce Schatz is Director of the Community Architectures for Network Information Systems (CANIS) Laboratory at UIUC. He is Professor in the Graduate School of Library and Information Science, with joint appointments in Computer Science, Neuroscience, and Health Information Sciences. He was the Principal Investigator of the Illinois Digital Library Project. He is Senior Research Scientist at the National Center for Supercomputing Applications (NCSA). He served as the scientific advisor on information systems when NCSA developed Mosaic, which was inspired by his earlier network information systems and spawned the World-Wide Web. His current research is building analysis environments to support community repositories (Interspace), and performing large-scale experiments in semantic retrieval for vocabulary switching. Schatz worked in industrial R&D at Bellcore and Bell Labs, and was PI at the University of Arizona of the flagship NSF National Collaboratory project that built a community system widely referenced as the national model for science information systems. He received a BA in mathematical sciences from Rice University, an MS in artificial intelligence from MIT, an MS in computer science from Carnegie-Mellon University, and a PhD in computer science from the University of Arizona.
William Mischo is Director of the Grainger Engineering Library Information Center. He is also Engineering Librarian and Professor of Library Administration at UIUC. His current interests include expanding the DLI project under the auspices of a CNRI grant to investigate the use of XML, cascading style sheets, and dynamic HTML in retrieving and rendering article full text. He received a BA in mathematics from Carthage College, and a MA in library and information science from the University of Wisconsin.
Timothy Cole is System Librarian for Digital Projects and Associate Professor of Library Administration at the UIUC library. His interests include information retrieval interfaces, processing of document structure, and the use of the Web in Libraries. He received a BS in aeronautical and astronautical engineering and an MS in library and information science from UIUC.
Ann Bishop is Assistant Professor in the Graduate School of Library and Information Science at UIUC. She is the Principal Investigator of a Department of Commerce grant on the introduction of computers in low-income neighborhoods. Her primary research interest is social aspects of information system design, evaluation, and use. She received a BA in Russian literature from Cornell, and a MLS and a PhD in information transfer from Syracuse University .
Susan Harum was the external relations coordinator for the University of Illinois Digital Libraries Initiative at UIUC from 1994 to 1998; she continues to assist the program director for digital libraries at the NSF. Her interests include collaborative research tools for international digital libraries. She received a BS in anthropology from Michigan State, a MA in eastern Asian languages and a MS in library and information science from UIUC.
Eric Johnson is a PhD candidate in the UIUC Graduate School of Library and Information Science. His research interests include hypermedia systems and hypertext use in thesaurus navigation and bibliographic retrieval. He received a BS in computer science and science and technology studies from Michigan State University, an MS in computer science from Northwestern University, and an MA in sociology and an MS in library and information science from UIUC.
Laura Neumann is a PhD candidate in the UIUC Graduate School of Library and Information Science. Her research interests include work practice and social issues surrounding the digitization of information, the use of digital libraries and other information systems, and the automation of work tasks. She received a BA in sociology and anthropology from the University of Minnesota.
Hsinchun Chen is Professor in the Department of Management Information systems at the University of Arizona and Director of the UA/MIS Artificial Intelligence Lab. His research interests include semantic retrieval, search algorithms, knowledge discovery, and collaborative computing. He received a BA from National Chiao-Tung University in Taiwan, a MBA from SUNY Buffalo, a MS and a PhD in information systems from New York University.
Dorbin Ng is a PhD candidate in the Department of Management Information Systems at the University of Arizona. His research interests include multimedia information retrieval, knowledge discovery using supercomputers, and user interfaces for collaborative computing. He received a BS in business administration and a MS in management information systems at the University of Arizona.
For more information on the Illinois Digital Library Project, see http://dli.grainger.uiuc.edu or email dli@uiuc.edu. Readers can contact the authors physically at CANIS Laboratory, University of Illinois, 704 S. Sixth St., Champaign, IL 61820 USA, or electronically at www.canis.uiuc.edu or schatz@uiuc.edu .
